found something interesting. is it a real one or a clone?
the board doesnt say apple and yet. i find it strange someone would put in a clone board in a real apple 2 case
see the pictures
thanks for your help in advance
look under the unit for serial number tag.
with the keyboard, motherboard and powersupply all being clone component, I am incline to think that it's a clone with II+ lid.

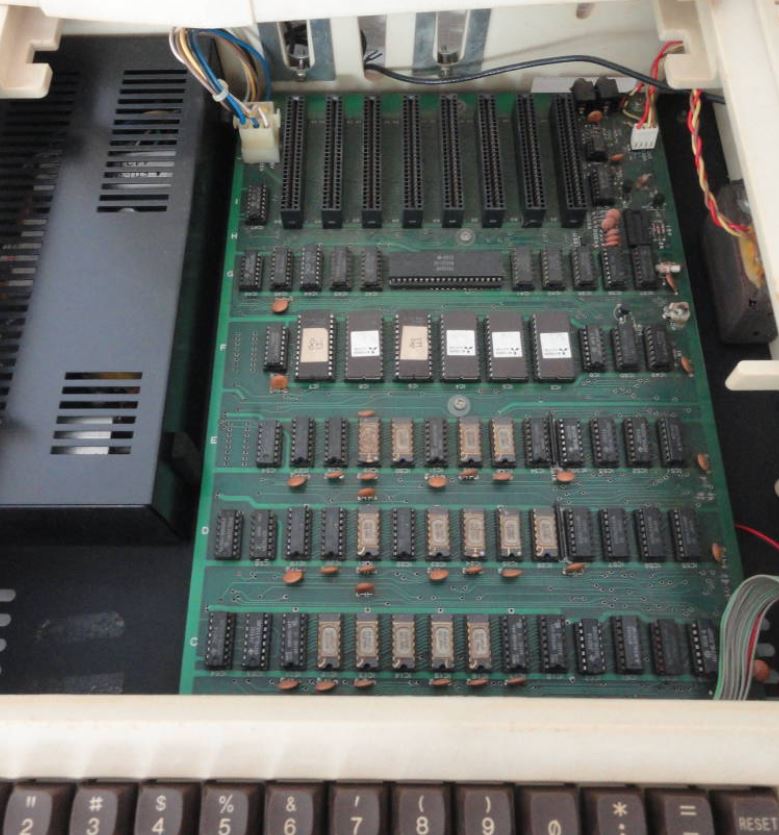

Can you provide a better picture, where the entire motherboard can be seen and you can read the labels on the chips?

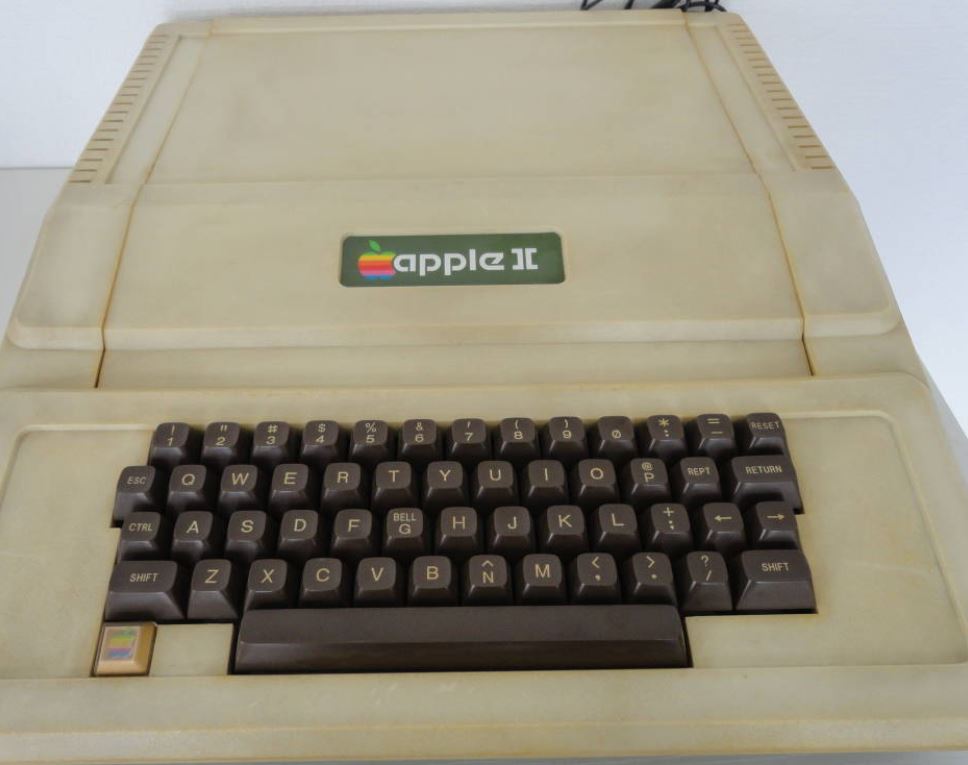

I think this is what was known in Japan as a 'Japple clone'. The leaf on the Apple logo is pointing in the opposite direction than it does on a real Apple II.
That's not an official Apple logo. Look closely!
Taiwan clone, I believe. Did they come out of Japan?

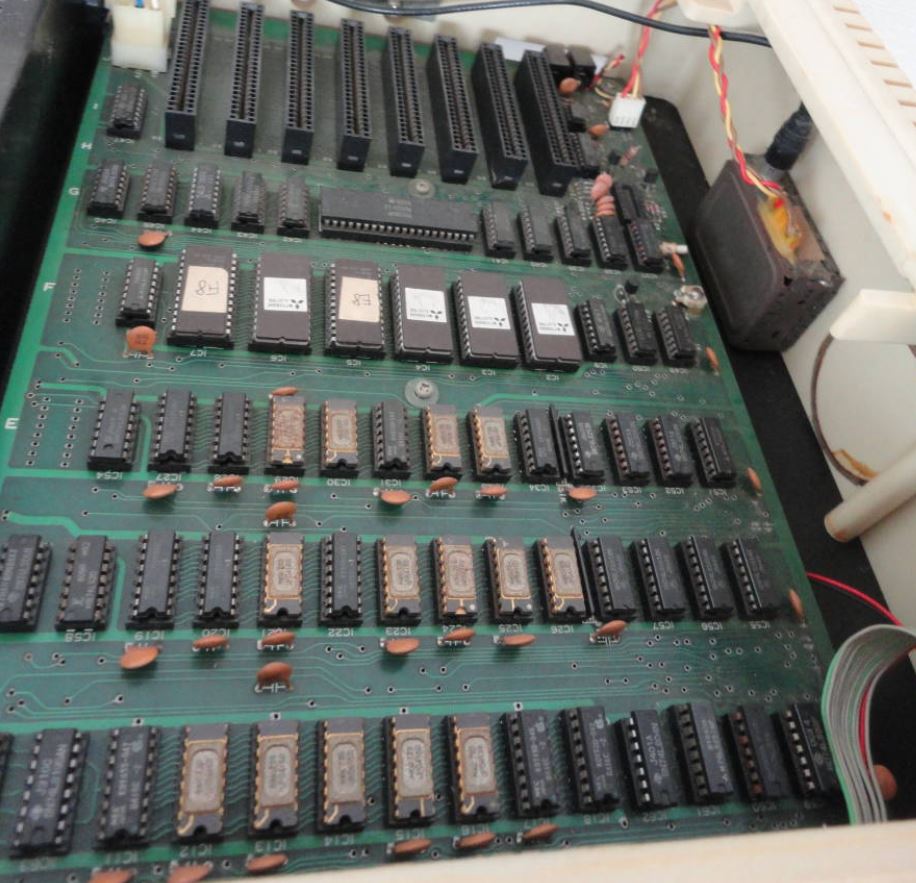

I've seen a few that said "Made in Japan", but most of them came from Taiwan or Hong Kong. That one is very typical of the earlier units of this pattern. Note 6 2716 EPROMs laid out like the ROMs on a ][+ -- not interchangable. Somewhere on that board there is an inverter for the select lines. Different power connector which is common. Later ones had reduced chip count, often 3 2732 EPROMs or I've seen one with a 2764 and one 2716. Most of these have a slightly different ROM image, usually they don't say "APPLE ][" on power up and usually they allow lower case input. But many clone shops or owners burned their own copies of the Apple ROM for compatibility reasons.
Intersting clone. I haven't seen one like this before.
It's not very well made - and doesn't have the chip part numbers on the silkscreen - only IC#s.
Also, I spotted a few Apple-branded RAM chips on it so over the years someone has done quite a bit of chip-swapping.
Anyway, if it works, use it! I wonder what the bootup, power-on screen looks like.
