Mimeo 1 build with a sprinkle of unobtanium

Post updated multiple times to correct image display issues...sorry about that...I'm an idiot.

I’ve been working with some coworkers to assemble an Apple-1 replica based on the Mimeo board by Mike Willegal that I purchased from Corey Cohen. The process was non-trivial, and wouldn’t have been possible without the help I got from various people sourcing componets and test software.

Having owned and used Apple computers for nearly 35 years, this was a great experience and will undoubtedly be useful as I begin the process of acquiring an original Apple-1 at some point in the next couple of years.

AttachmentSize
Image icon IMG_0085.jpg214.78 KB
Image icon IMG_6143.jpg231.52 KB
Image icon APC_0493-hdr.jpg138.27 KB
Image icon L1020096.jpg345.03 KB
Image icon IMG_0458.jpg372.57 KB
fingerz's picture
Offline
Last seen: 4 days 7 hours ago
Joined: Aug 10 2017 - 13:40
Re: Mimeo 1 build with a sprinkle of unobtanium

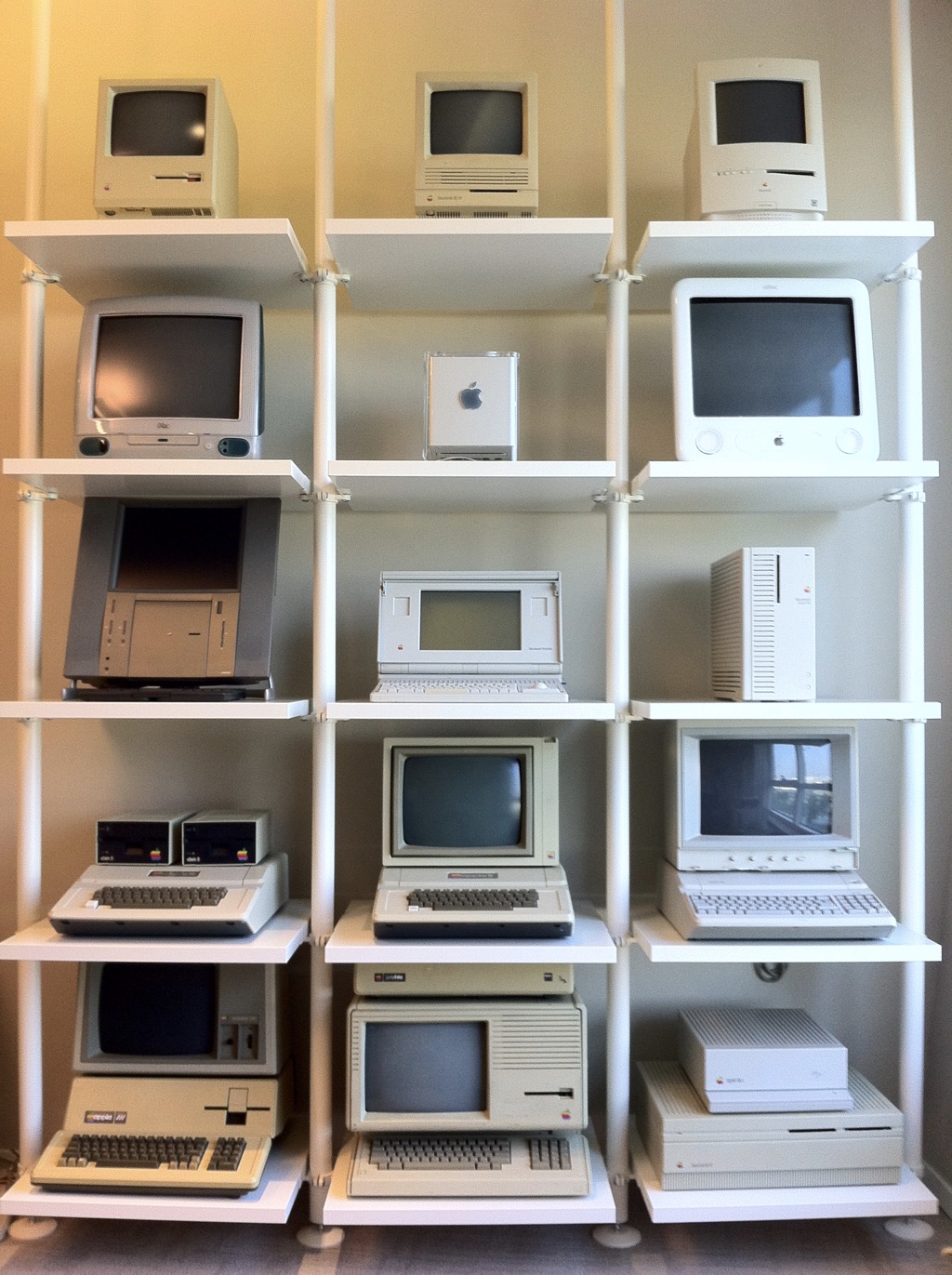

Here’s a photo of some of my other Apple computers in my collection...though this photo is a few years old and I’ve added several more recently and a bunch are not displayed:

GIULIOBIT's picture
Offline
Last seen: 1 week 2 hours ago
Joined: Nov 27 2013 - 05:43
Re: Mimeo 1 build with a sprinkle of unobtanium

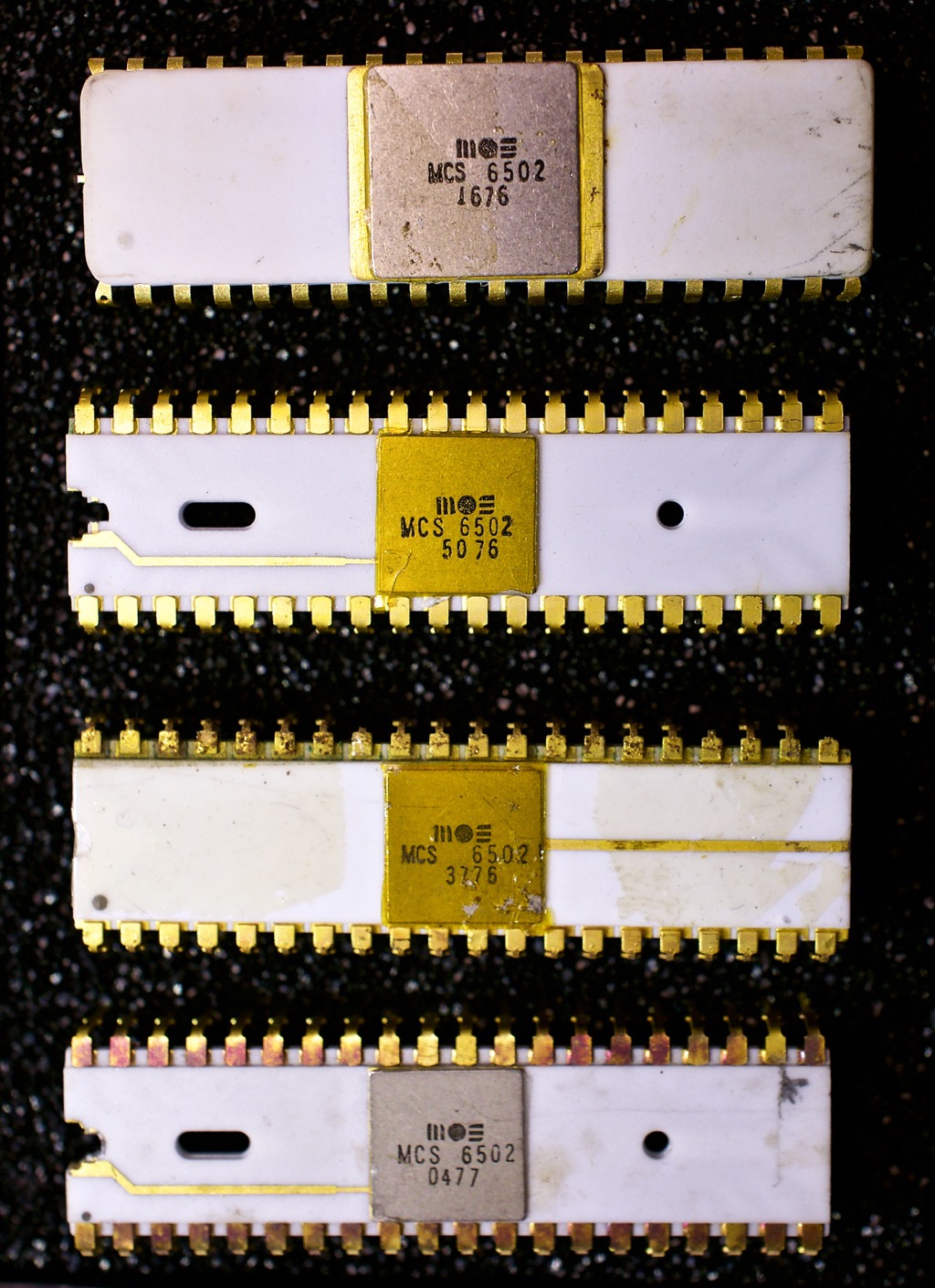

Very nice collection of white ceramic Gold MOS MCS 6502

speedyG's picture
Online
Last seen: 1 min 54 sec ago
Joined: Nov 16 2011 - 07:45
Re: Mimeo 1 build with a sprinkle of unobtanium

Nice rebuild .... - but wrong kind of resistors and wrong typ of sockets....
speedyG

fingerz's picture
Offline
Last seen: 4 days 7 hours ago
Joined: Aug 10 2017 - 13:40
Re: Mimeo 1 build with a sprinkle of unobtanium

speedyG wrote:
Nice rebuild .... - but wrong kind of resistors and wrong typ of sockets....

Yeah, we cut a few corners where we had compatible components in house. Now we will work on replacing those as & when we find the right ones. Any pointers on what we should be looking for exactly?

speedyG's picture
Online
Last seen: 1 min 54 sec ago
Joined: Nov 16 2011 - 07:45
Re: Mimeo 1 build with a sprinkle of unobtanium
fingerz's picture
Offline
Last seen: 4 days 7 hours ago
Joined: Aug 10 2017 - 13:40
Re: Mimeo 1 build with a sprinkle of unobtanium

Thanks speedyG and Giuliano for the detailed info. I will start stockpiling components for another Mimeo build as the one I’ve assembled now I’m donating to my elementary school’s library for a memorial to my former computer teacher who recently passed away.

In the mean time, I will also continue my quest to acquire an original Apple-1. Building a replica and spending time on this forum will help me make a more informed purchase decision when the time comes.

Offline
Last seen: 5 months 4 weeks ago
Joined: Oct 5 2017 - 09:17
Re: Mimeo 1 build with a sprinkle of unobtanium

I like your HP logic analyzer! I have a similar model from HP (mine is a 1630D.) They're absolutely wonderful machines! Smile
