Original Apple 2 motherboard?

Hello Apple friends
Whoever knows this board?
Is that an original Apple 2 board? Who can this say something to me?
regards mwlay

AttachmentSize
Image icon P1160943.JPG151.24 KB
Image icon P1160942.JPG160.85 KB
Image icon P1160944.JPG160.67 KB

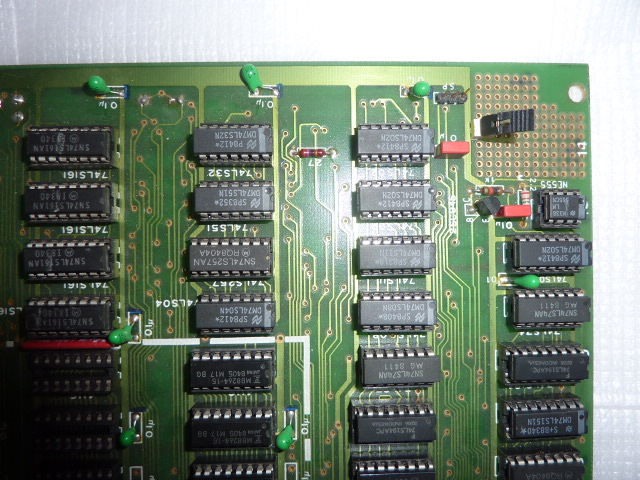

Image icon P1160945.JPG154.09 KB
Image icon P1160946.JPG159.49 KB

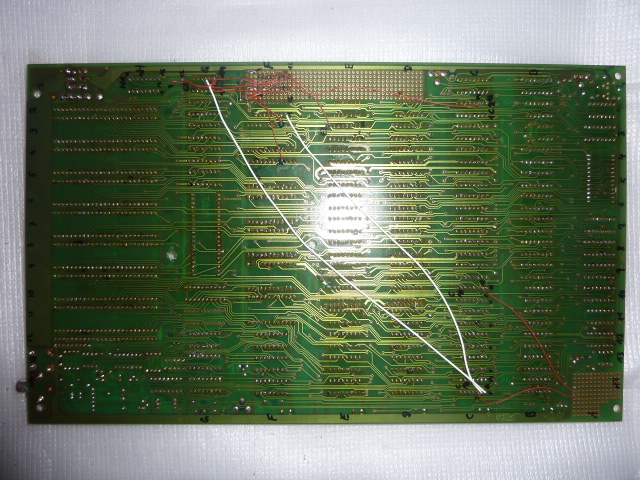

Image icon P1160947.JPG151.17 KB

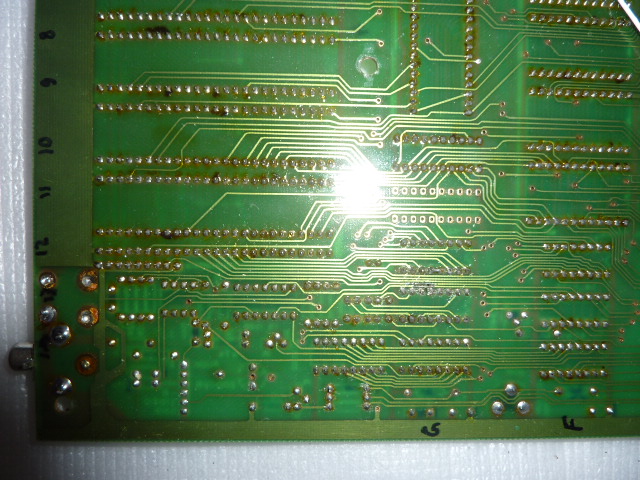

Image icon P1160948.JPG149.3 KB
Offline
Last seen: 2 years 5 months ago
Joined: Jun 15 2014 - 12:48
Re: Original Apple 2 motherboard?

Definitely not original...One of many clones...

MarkO's picture
Offline
Last seen: 3 days 12 hours ago
Joined: Dec 10 2011 - 16:26
Re: Original Apple 2 motherboard?

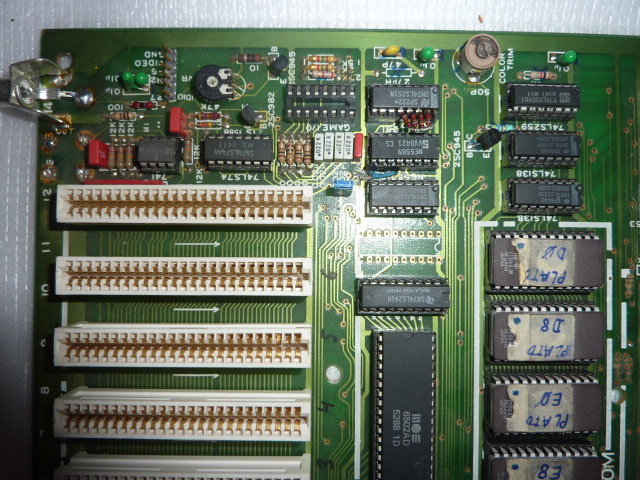

Two Prototyping areas is kind of cool....

I have never seen an Apple ][ with White Slots... That would have been my first clue it was a Clone...

MarkO

gsmcten's picture
Offline
Last seen: 1 month 5 hours ago
Joined: Oct 4 2005 - 18:52
Re: Original Apple 2 motherboard?

mwlay,

This is definitely not an Apple II Motherboard.
It must be some sort of clone, but I couldn't say from what.

I have never seen one quite like this.

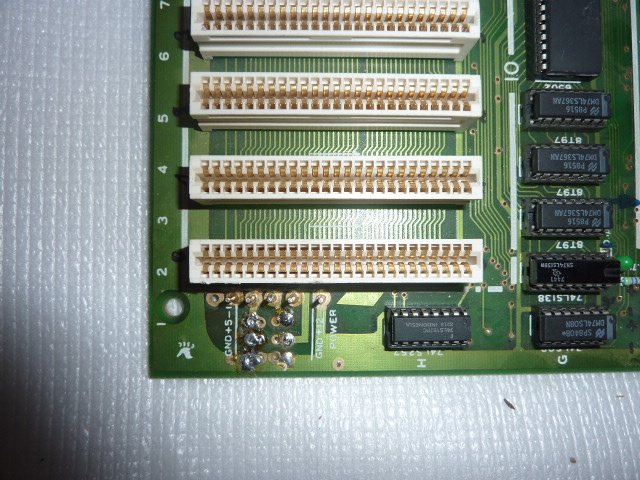

When I look at Picture #1, I wonder why the normal
Power Connector has been removed and replaced with
what seems to be a set of IIgs connector pins?

Very odd.

Steven Smile

dorkbert's picture
Online
Last seen: 55 min 12 sec ago
Joined: Apr 12 2009 - 16:33
Re: Original Apple 2 motherboard?

gsmcten wrote:
When I look at Picture #1, I wonder why the normal Power Connector has been removed and replaced with what seems to be a set of IIgs connector pins?
That is fairly common amongst clones. Probably because the particular type of connector is much easier to come by.

gsmcten's picture
Offline
Last seen: 1 month 5 hours ago
Joined: Oct 4 2005 - 18:52
Re: Original Apple 2 motherboard?

Dorkbert,

So it's one of those things that
make you scratch body parts and makes you go
"Hmmmm?" lol

Steven Smile

speedyG's picture
Offline
Last seen: 2 days 5 hours ago
Joined: Nov 16 2011 - 07:45
Re: Original Apple 2 motherboard?

Hello mwlay,

first of all welcome to the community,

in general your question has been answered....

but several remarks are still missing:

in Europe that kind of clone mainboard has been rather common in the years from 1980 to 1982.
There also the white slots have been very common and often sold so they are rather commen at
clone mainboards of that age.

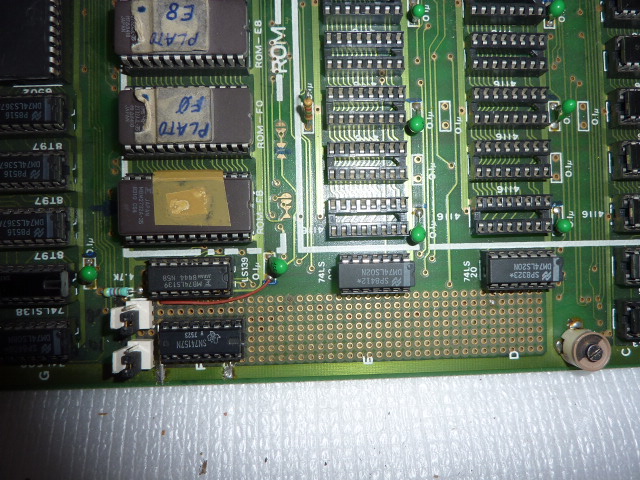

It´s in general a clone of a rev.4 mainboard and is easy identified by the prototyping areaa.
The real rare portion of the board is the fact that it has been mofified to the use of 4164 RAM Chips.
This was rather well known mod in the years from 1982 to 1983.

There have been 3 kinds of mods:
the CRAM 192 kB mod ( sold as Kit )
the Phantom 192 kB mod ( sold as Kit )
and finally the most common and advanced mod published in the German electronic Magazine "c´t".

In all 3 cases the banks have been switched by software and adressing of the annunciators of the gameport.

In general such mods have been populated entirely with the 4164 chips offering full 192 kB on the mainboard.

In general only the 16 kB language card demanded to be one not connected to the mainboard by cable like
the commenly used language cards of that days to avoid conflict between the 4116 at the languagecard and the
4164 chips at the mainboard.

You may download from my site the 3 different descriptions of the possible modification:
http://www.appleii-box.de/H004_AppleII192kBupgradepage.htm

In general at such mods there was a switch used to switch between Apple II compatible mode with only 64 kB
adressable ( meaning that switching by the annunciators was disabled ) to avoid conflicts with games that used the
Paddles at the gameport or switching to "extended mode" with the annunciators active and the entire 192 kB availiable.
At this mainbaoard instead the person used Jumperblocks.

The powerpins in one line also have been common due to the fact that a bunch of clone power supplies from Taiwan
had that kind of connectors.

sincerely speedyG

Offline
Last seen: 2 years 11 months ago
Joined: Nov 26 2013 - 17:20
Re: Original Apple 2 motherboard?

thanks for the replies.
I bought the board along with an Apple 2e on ebay.
The board works. the jumpers I can switch between different versions of ROM. As an Apple keyboard is 2 keyboard needed. I use a PS2 keyboard with PIC controller. See here:http://knzl.de/ps2-keyboard-for-apple-ii/
Best Regards
Matthias Witte
