Very Interesting Apple //e Diagnostics Card ROMS
AttachmentSize
Image icon IMG_0934.JPG4.34 MB
Image icon DSC_0223.JPG9.81 MB
Image icon DSC_0222.JPG9.78 MB
Image icon DSC_0224.JPG8.63 MB
Image icon DSC_0226.JPG9.38 MB
Image icon DSC_0227.JPG9.05 MB

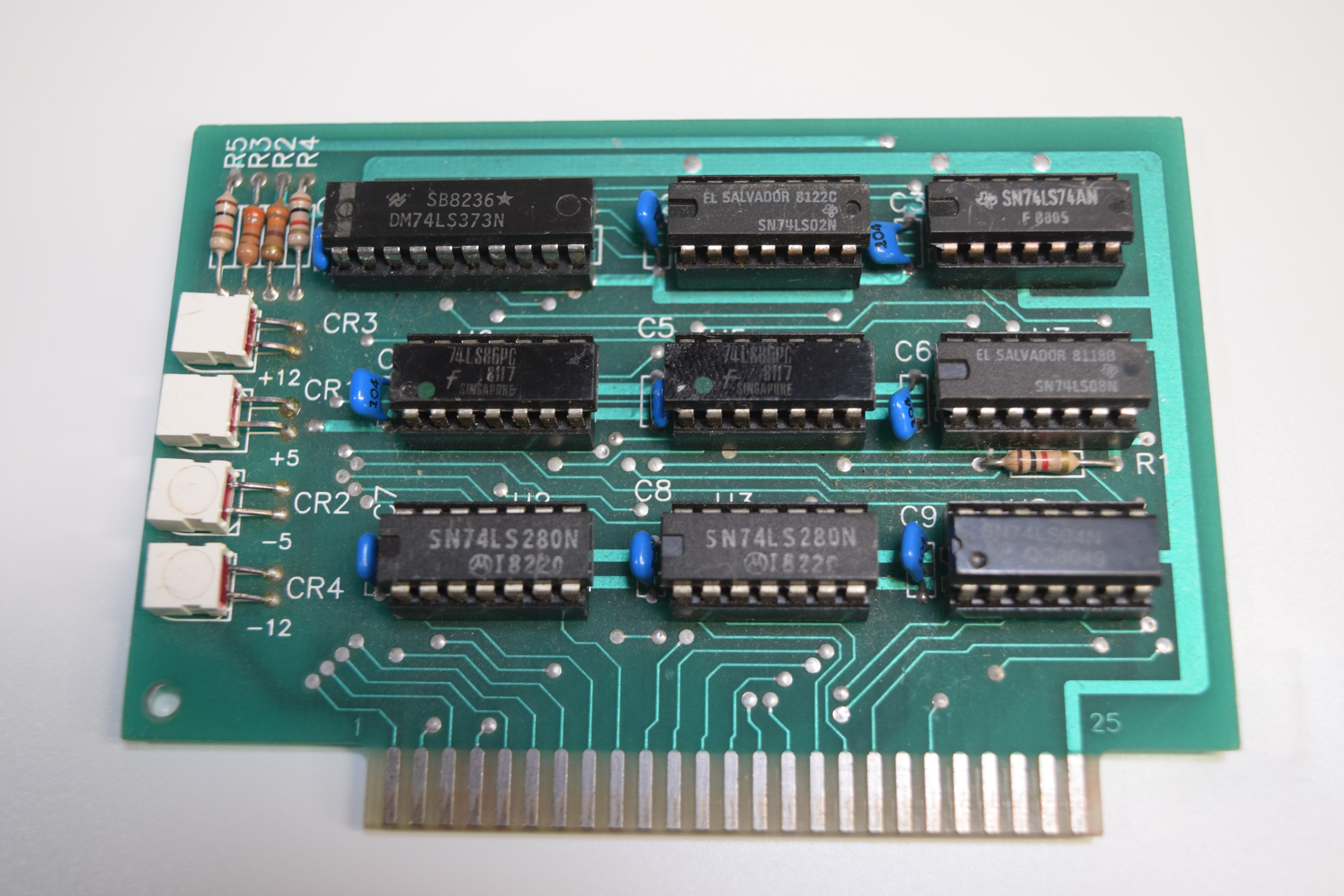

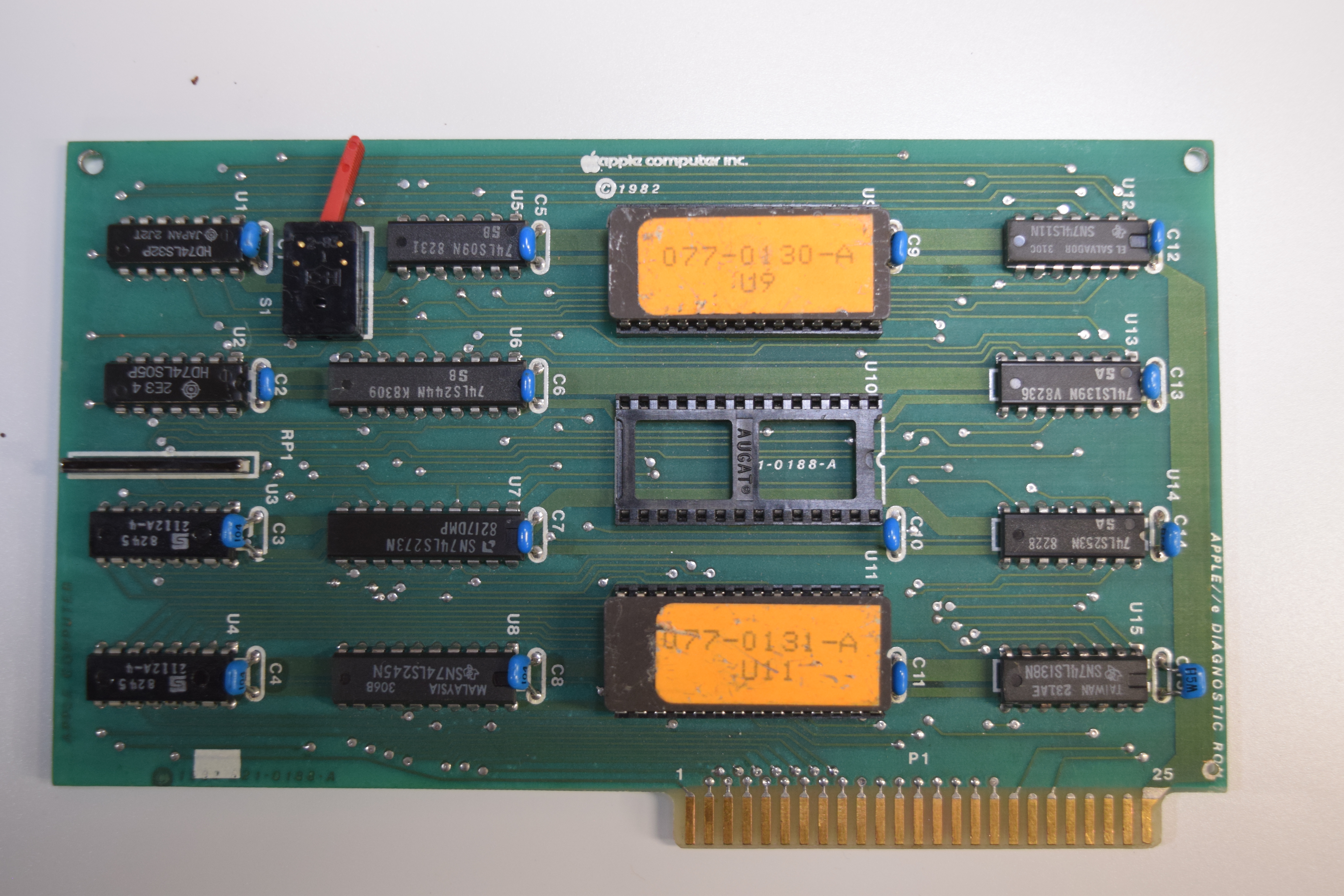

Well, I have sucessfully dumped all the ROMs for the cards below and made a copy of the 077-0130 and 077-0131 ROMs for the diagnostics card I replicated.

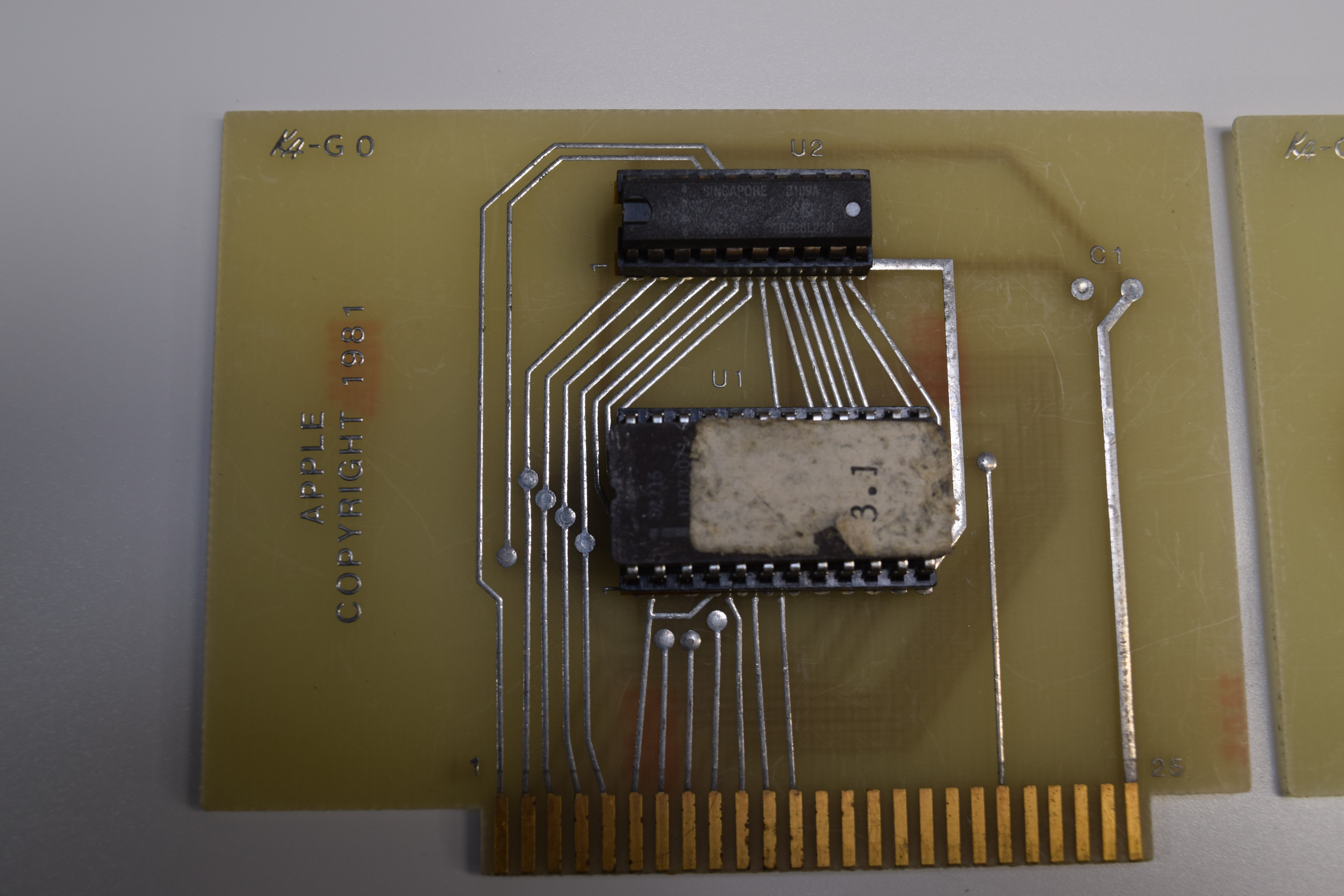

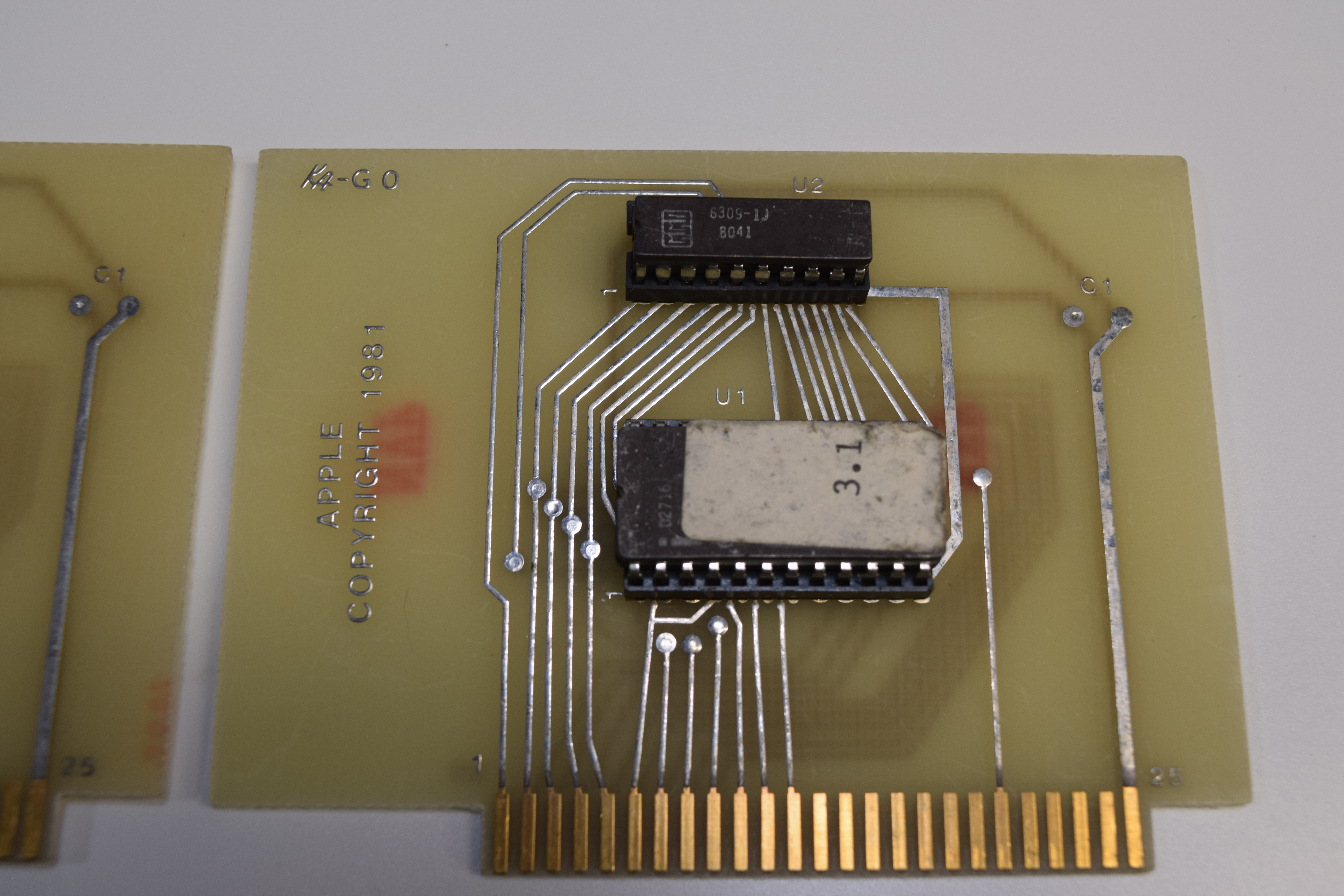

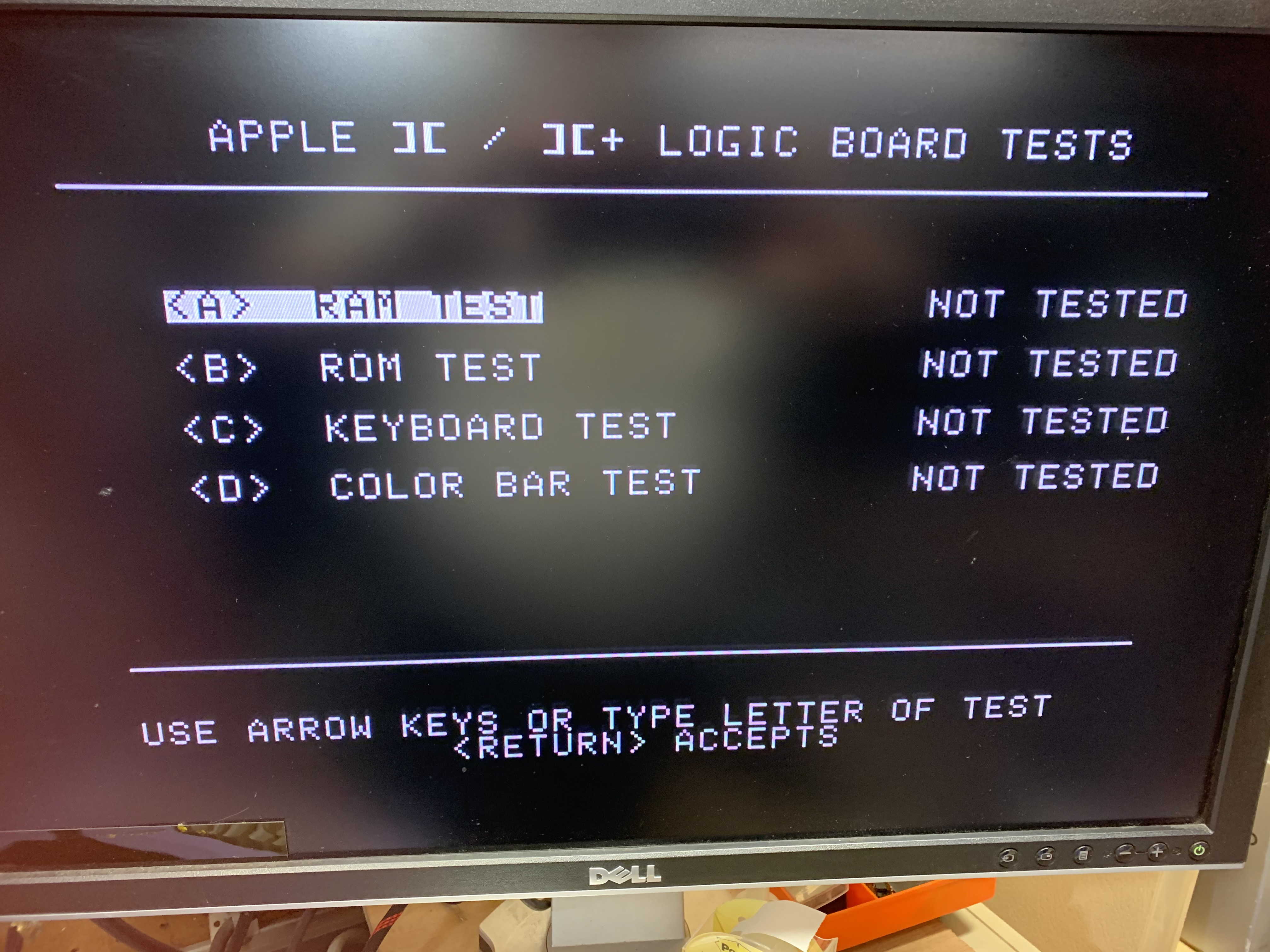

And lo and behold, the ROMs (that I didn't fine official Apple Part Numbers for - and now I know why) are logic board testing the Apple ][ and Apple ][+ units.  I didn't dig out an Apple II+ or one of my Apple IIs to see if this card actually works in them, but it looks like it might.



I wanted to post this, but now I am going to go try it and I will post back on this thread what I find out.



Thanks,

Jay





Offline
Last seen: 1 year 10 months ago
Joined: Mar 31 2020 - 19:55
Posts: 848
We could use ROM dumps of

We could use ROM dumps of these for this project, if you are willing:



https://www.applefritter.com/content/smd-rom-replacement-apple-plus-europlus?page=1#comment-90023

Offline
Last seen: 1 year 10 months ago
Joined: Mar 31 2020 - 19:55
Posts: 848
To be specific, the ][ / ][+

To be specific, the ][ / ][+ Diagnostics ROM, is what's needed.

BIT
BIT's picture
Offline
Last seen: 2 weeks 1 day ago
Joined: May 3 2020 - 11:17
Posts: 62
Hi Jay,confirm me if I

Hi Jay,confirm me if I understand correctly:in practice, by replacing the 2 EPROM 28C64 with other 2 EPROM containing the images of the ROMs 077-0130 and 077-0131, can I transform your diagnostic card into a diagnostic card for Apple] [ and  ] [+ (europlus)?If so, it's great news and I'm interested.Could I have more information?

Regards

jwg1962's picture
Offline
Last seen: 11 hours 13 min ago
Joined: Jan 29 2012 - 07:17
Posts: 363
Yes. It appears to be the

Yes. It appears to be the case.  The 077-0130 and 0131 ROMs were never released to the dealers.  I suspect these were for Apple Internal Use.  I will upload these ROMs somewhere this weekend and post the URL here and on Facebook A2 Enthusists group.   I am slammed until the weekend.  Also I want to test in my ][ and ][+.





THanks,

Jay



BIT
BIT's picture
Offline
Last seen: 2 weeks 1 day ago
Joined: May 3 2020 - 11:17
Posts: 62
Hi Jay,congratulations for

Hi Jay,congratulations for the excellent and precise work: you are a guarantee :)What is the exact EPROM model I need to order?Thanks again

Offline
Last seen: 1 year 10 months ago
Joined: Mar 31 2020 - 19:55
Posts: 848
jwg1962 wrote:Yes. It appears
jwg1962 wrote:

Yes. It appears to be the case.  The 077-0130 and 0131 ROMs were never released to the dealers.  I suspect these were for Apple Internal Use.  I will upload these ROMs somewhere this weekend and post the URL here and on Facebook A2 Enthusists group.   I am slammed until the weekend.  Also I want to test in my ][ and ][+.





THanks



These cards were however, occasionally provided to Apple ][+ developers, although that may have been elicit at the time. I clearly remember one of these in our office.  This is the card, and the ROM set, that I remember fro 1981/2. I knew that a diag ROM existed, but until now, I could do nothing other that state that I remember them. I greatly appreciate you finding one, and any efforts that you make to allow public access to it.

jwg1962's picture
Offline
Last seen: 11 hours 13 min ago
Joined: Jan 29 2012 - 07:17
Posts: 363
If anyone wants the 077-013x

If anyone wants the 077-013x ROMS for the Diagnostics Card, here they are.



https://pitt.box.com/s/eskxw5vy0on5eq5jghzrmguvwuq0tjqw



Jay



macnoyd's picture
Offline
Last seen: 2 days 1 hour ago
Joined: Oct 15 2012 - 08:59
Posts: 835
Thanks for sharing, Jay

Thanks for sharing, Jay. Much appreciated.

BIT
BIT's picture
Offline
Last seen: 2 weeks 1 day ago
Joined: May 3 2020 - 11:17
Posts: 62
Thanks Jay, :)Sorry for my

Thanks Jay, :)Sorry for my dummy question.On which EPROM model should I write the .BIN files (maybe 2716) ?All EPROM pins correspond to those of the ROMs or it need an adapter?

Offline
Last seen: 1 year 10 months ago
Joined: Mar 31 2020 - 19:55
Posts: 848
BIT wrote:Thanks Jay, :)Sorry
BIT wrote:

Thanks Jay, :)Sorry for my dummy question.On which EPROM model should I write the .BIN files (maybe 2716) ?All EPROM pins correspond to those of the ROMs or it need an adapter?



Slow down there. We do not yet know what address lines these are using. I may be able to plot it from the photos by visually following traces, but the easiest thing to do ios to test these as the lowest ROM space in an emulator first, to see if it will boot from that range.



An alternative may be to build an Apple ROM card variant, and put EPROMs on it, then see if it can run from a specific address space on that card.

amauget's picture
Offline
Last seen: 1 day 16 hours ago
Joined: Jan 3 2011 - 11:34
Posts: 339
BIT wrote:Thanks Jay, :)Sorry
BIT wrote:

Thanks Jay, :)Sorry for my dummy question.On which EPROM model should I write the .BIN files (maybe 2716) ?



 The  Apple //e Diagnostic card uses 2764 EPROMs. No adapter needed.

jwg1962's picture
Offline
Last seen: 11 hours 13 min ago
Joined: Jan 29 2012 - 07:17
Posts: 363
Correct. 2764 or 28C64

Correct. 2764 or 28C64 EEPROMs will also work.



Offline
Last seen: 1 year 10 months ago
Joined: Mar 31 2020 - 19:55
Posts: 848
jwg1962 wrote:Correct. 2764
jwg1962 wrote:

Correct. 2764 or 28C64 EEPROMs will also work.



Aren't these ][+ Diag ROMs, though? Now, they are likely still fine on 2764s, but as far as I could tell, that dump was for the Apple ][ factory test board, not the dealer diagnostics //e card.

jwg1962's picture
Offline
Last seen: 11 hours 13 min ago
Joined: Jan 29 2012 - 07:17
Posts: 363
Hi TImelord,   I think I put

Hi TImelord,

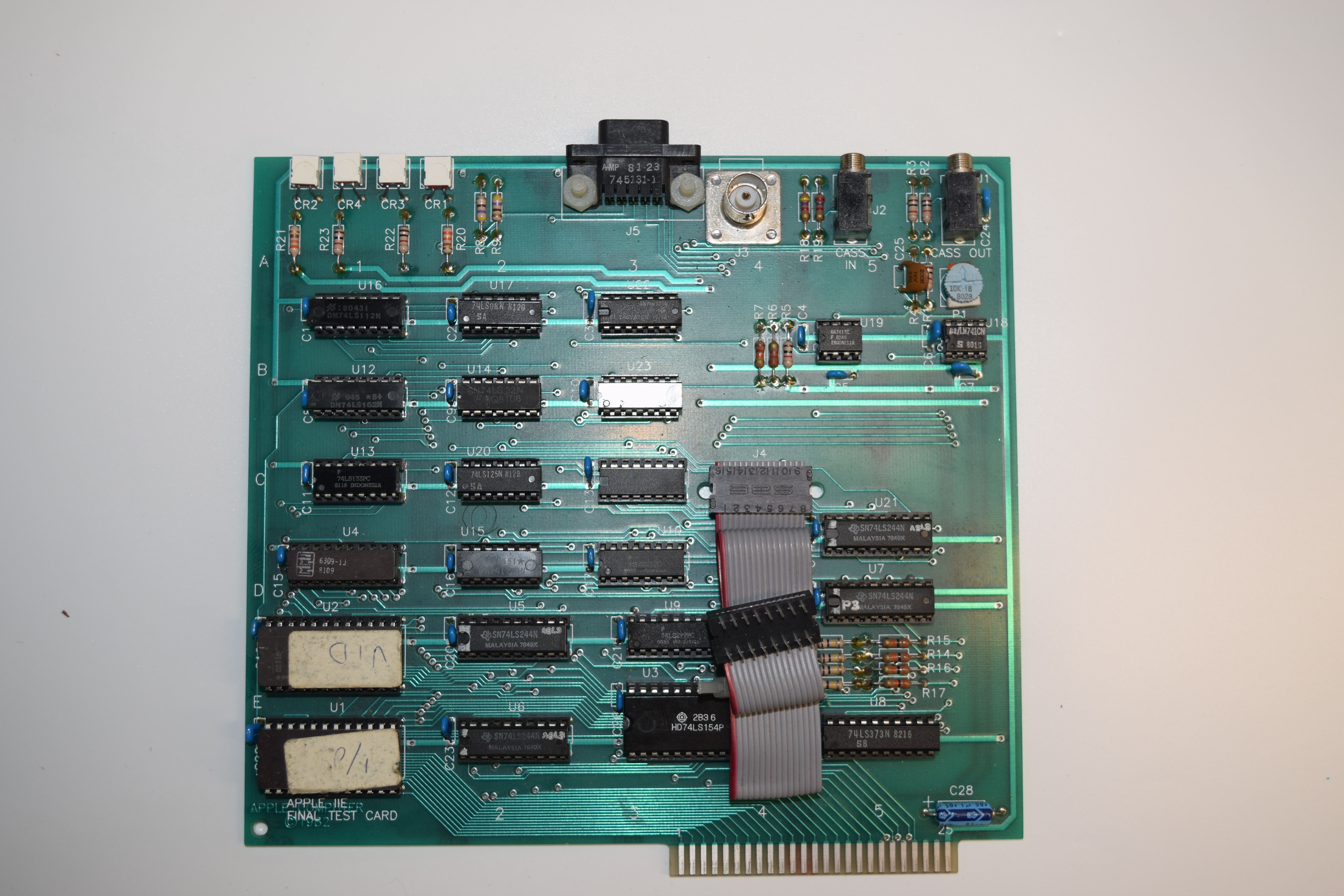

I think I put both the 2716 ROMS for the final test card and the 2764 for the diagnostic card up there.  Let me double check tomorrow.



THanks,

Jay
