I got my Smartport Virtual Hard Drive

31 posts / 0 new
Last post
Offline
Last seen: 1 month 3 weeks ago
Joined: Apr 24 2012 - 17:03
I got my Smartport Virtual Hard Drive

A few weeks ago I contacted Cedric Peltier regarding the Smartport Virtual Hard Drive. I've been looking for an HD solution for a long time. I heard that the assembled product was on back order, so I ordered the basic Micropendous only.

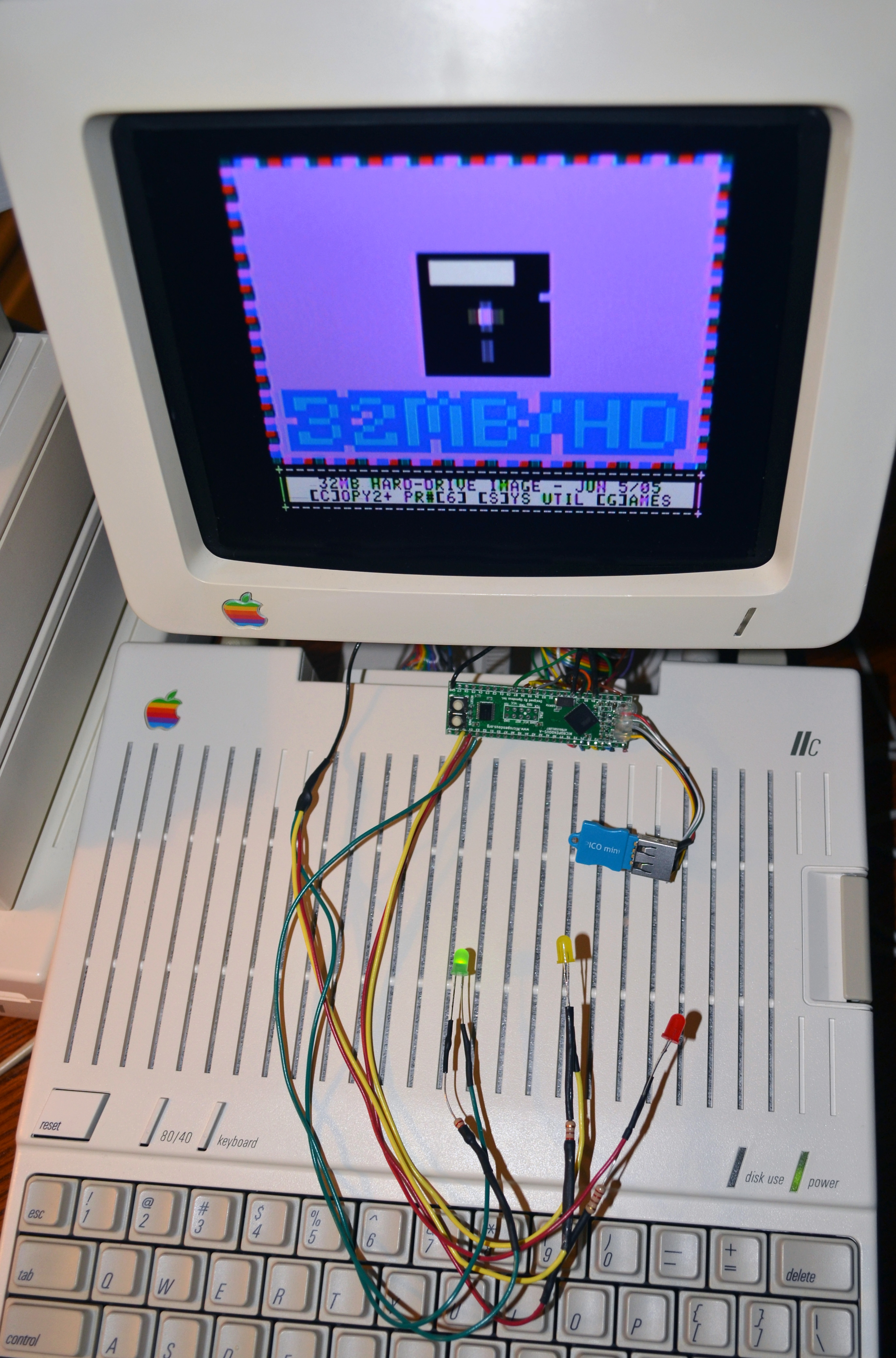

After getting the main unit, had to order some resistors and diodes. Finally today I spent all day putting together a bare bones version, and it looks fantastic!
It loads right after the floppy drive, you only have to rename any floppy or disk image as "drive0.img" and that's it. I have some images of it, hope you like it.
Cheers
Javster

AttachmentSize
Image icon Smartport Virtual Hard Drive2.04 MB
gsmcten's picture
Offline
Last seen: 1 month 20 hours ago
Joined: Oct 4 2005 - 18:52
Re: I got my Smartport Virtual Hard Drive

Javster,

Absolutely Cool!

I ordered my full (completely built) version from Cedric at the end of February.
I expect it to arrive in the next couple of months as he has a waiting list.
This will be the crowning jewel for my IIc.

I cannot wait for it to get here. Smile

Offline
Last seen: 1 month 3 weeks ago
Joined: Apr 24 2012 - 17:03
Re: I got my Smartport Virtual Hard Drive

I think you will love it, gsmcten. My only question is how to load my collection, as I think its just like the CFFA: uses ProDOS formatted images. I'm new in these large formats, and wonder how to load images like Karateka, Prince of Persia, etc in one volume to select directly.
Regards
Javster

gsmcten's picture
Offline
Last seen: 1 month 20 hours ago
Joined: Oct 4 2005 - 18:52
Re: I got my Smartport Virtual Hard Drive

ADTPRO

http://adtpro.sourceforge.net/

Its the bestest in the land! Smile

Offline
Last seen: 1 month 3 weeks ago
Joined: Apr 24 2012 - 17:03
Re: I got my Smartport Virtual Hard Drive

Well, I use that to create the floppies the I download from the web, but how about compiling a 32 MB image? I think it has to be ProDos format...
Any one that have created big archives for the CFFA?

Cheers
Javster

Mr.Fix's picture
Offline
Last seen: 2 months 4 days ago
Joined: Mar 21 2005 - 22:52
Re: I got my Smartport Virtual Hard Drive

Javster, very nice addition to your iic. Curious to know how long it took from payment to your doorstep? Also any plans on what enclosure you will be putting this into?

Offline
Last seen: 1 week 1 day ago
Joined: Jan 14 2011 - 22:41
Re: I got my Smartport Virtual Hard Drive

javster wrote:
Well, I use that to create the floppies the I download from the web, but how about compiling a 32 MB image? I think it has to be ProDos format...
Any one that have created big archives for the CFFA?

Cheers
Javster

Try CiderPress:

http://ciderpress.sourceforge.net/

Offline
Last seen: 1 month 3 weeks ago
Joined: Apr 24 2012 - 17:03
Re: I got my Smartport Virtual Hard Drive

It took about two weeks from purchase to delivery. I'm planning to use an old A9M0106, gut it and adapt it. Will look nice. Smile

Offline
Last seen: 1 month 3 weeks ago
Joined: Apr 24 2012 - 17:03
Re: I got my Smartport Virtual Hard Drive

I will have to install parallels to run ciderpress, and will have to research how to create large disk images on DOS 3.3 and ProDos.

Offline
Last seen: 1 week 1 day ago
Joined: Jan 14 2011 - 22:41
Re: I got my Smartport Virtual Hard Drive

javster wrote:
I will have to install parallels to run ciderpress, and will have to research how to create large disk images on DOS 3.3 and ProDos.

The Smartport is used to host a usb drive on the IIc? I use CiderPress on a PC for CFFA3000, so I would guess it is similar. Something like: Run CiderPress->File->New->Disk Image->ProDos->32Meg. Now you have your Apple "Hard Drive." Then open a second window of CiderPress to open existing disk images, say from Asimov ftp site. Then copy files over, as desired, from existing disk images to the new 32 Meg Prodos file. When done, you have a "hard drive" image which can then be copied from the local PC over to the USB drive, and attach the USB to the SmartPort. I do not have a SmartPort, so I'm making inferences here.

Offline
Last seen: 1 year 9 months ago
Joined: Jan 24 2005 - 16:20
Re: I got my Smartport Virtual Hard Drive

Quote:
I will have to install parallels to run ciderpress, and will have to research how to create large disk images on DOS 3.3 and ProDos.

Save your money, try https://www.virtualbox.org/

All you need is the Windows license, as VirtualBox is open source and free.

Offline
Last seen: 3 years 8 months ago
Joined: Jun 12 2013 - 07:24
Re: I got my Smartport Virtual Hard Drive

Has anyone received their complete finished product?

gsmcten's picture
Offline
Last seen: 1 month 20 hours ago
Joined: Oct 4 2005 - 18:52
Re: I got my Smartport Virtual Hard Drive

Omne,

I was told that they are supposed to start shipping in September.
I'm on the list, so I'm waiting too. Smile

Offline
Last seen: 1 month 3 weeks ago
Joined: Apr 24 2012 - 17:03
Re: I got my Smartport Virtual Hard Drive

I forgot to share an image of my SPVHD, after fitting it into an old IIGS drive. Here it is, and works flawlessly.
Final SPVHD

gsmcten's picture
Offline
Last seen: 1 month 20 hours ago
Joined: Oct 4 2005 - 18:52
Re: I got my Smartport Virtual Hard Drive

Javster,

Looks good! Smile

Offline
Last seen: 3 years 8 months ago
Joined: Jun 12 2013 - 07:24
Re: I got my Smartport Virtual Hard Drive

Very nice.

Craig MX's picture
Offline
Last seen: 6 months 1 week ago
Joined: Aug 12 2004 - 22:43
Re: I got my Smartport Virtual Hard Drive

I absolutely love this picture, because you're running the 'lo-res startup' I wrote for my 32MB HD image I was using on Applewin!

Oh and that card looks fantstic - Great job!

Let me know if you want me to customize that startup routine to match your system!!
I could redo the graphics to say something else, for example: Smartport HD!

Cheers!
Craig

Offline
Last seen: 1 month 3 weeks ago
Joined: Apr 24 2012 - 17:03
Re: I got my Smartport Virtual Hard Drive

Wow! Craig, so you created that image? Let me tell you, I found it online and consider it the best! Thanks and kudos for it! Yes, if you don't mind please add "Smartport HD, we can put it somewhere available to everybody.

I'm very happy with the SPVHD in the case, bought it on eBay for $11, cleaned it and gutted it, inside is a small mess but used most of the original parts. I'm thinking on caulk it and paint it to match. Will see.
Regards

Javster

Craig MX's picture
Offline
Last seen: 6 months 1 week ago
Joined: Aug 12 2004 - 22:43
Re: I got my Smartport Virtual Hard Drive

javster wrote:
Wow! Craig, so you created that image? Let me tell you, I found it online and consider it the best! Thanks and kudos for it! Yes, if you don't mind please add "Smartport HD, we can put it somewhere available to everybody.

I'm very happy with the SPVHD in the case, bought it on eBay for $11, cleaned it and gutted it, inside is a small mess but used most of the original parts. I'm thinking on caulk it and paint it to match. Will see.
Regards

Javster

Hello Javster,

Definitely glad you enjoyed it, and it's good to know the time I spent at the ole keyboard back in 2005 wasn't a complete waste! Smile

So for an updated version, I thought it best to remove that floppy disk 'icon' and replace it with a SPVHD icon... Well, as close as we can get in low-res graphics.

Let me know what you think, or if you want any of the text re-arranged or revised.

My plan is to animate the border like the original 32MB/HD title screen, every so often have the SMARTPORT letters swap from blue to orange and have the 3 lights (red-yellow-green) light up.

Thoughts? Feedback? Suggestions?

I'll work on a bit of coding in Applewin this evening, hopefully I'll have something ready for you no later than next weekend.

Cheers,
Craig

Offline
Last seen: 1 month 3 weeks ago
Joined: Apr 24 2012 - 17:03
Re: I got my Smartport Virtual Hard Drive

Well, after picking up my jaw just have to congratulate for the awesome graphic, it's perfect! Will be looking forward for the new version. Thanks!!
Javster

Craig MX's picture
Offline
Last seen: 6 months 1 week ago
Joined: Aug 12 2004 - 22:43
Re: I got my Smartport Virtual Hard Drive

javster wrote:
Well, after picking up my jaw just have to congratulate for the awesome graphic, it's perfect! Will be looking forward for the new version. Thanks!!
Javster

So far so good ... I've got the 32MB ProDOS Hard drive-image all redone, new title screen on and the border scrolling nicely.

Find the zipfile here: http://www.apple-2.com/vintage-dl/smartporthd.zip

Of course I've post-dated it to the 21-Aug-13, so it's not technically even released yet, lol!

I might add a few more animation routines as time permits, but for now that'll get you started with an updated frontend for your SPVHD.

If you want to speed up or slow down the border scrolling, do as follows:

(Work from a backup copy, just in case)

LOAD STARTUP
CALL -151

E16:A9 -- (Change -- to a value between $01 and $FF)

Example 1: E16:A9 45 (fast)
Example 2: E16:A9 FF (slow)

Press CTRL-C followed by the RETURN key

RUN (to preview)
SAVE STARTUP (when happy with the speed)

Enjoy!

Cheers,
Craig

Offline
Last seen: 1 month 3 weeks ago
Joined: Apr 24 2012 - 17:03
Re: I got my Smartport Virtual Hard Drive

Craig, here is a photo of your great splash screen, again, thanks!
Javster
New SPVHD splash screen

Craig MX's picture
Offline
Last seen: 6 months 1 week ago
Joined: Aug 12 2004 - 22:43
Re: I got my Smartport Virtual Hard Drive

javster wrote:
Craig, here is a photo of your great splash screen, again, thanks!
Javster
New SPVHD splash screen

Hello Javster,

You're most welcome, and that picture sure looks great! Enjoy!

Cheers,
Craig

Offline
Last seen: 2 years 4 months ago
Joined: Aug 27 2015 - 10:33
Re: I got my Smartport Virtual Hard Drive

Hello everyone,

I am trying to do smartport emulation on my Apple IIc (Rom 0) via the floppy emu from Steve Chamberlin. The smartporthd file provided by Craig (see above) works well but I do not understand the rules/guidelines for creating my own 32MB ProDos disk image. So I have two questions:
1) what files must be present in the root of the virtual drive?
2) how can I copy 5.25" disk images onto the virtual drive to run the program that they contain?
Any other info would be greatly appreciated.

Offline
Last seen: 2 years 2 months ago
Joined: May 2 2013 - 20:14
Re: I got my Smartport Virtual Hard Drive

I want one.

Craig MX's picture
Offline
Last seen: 6 months 1 week ago
Joined: Aug 12 2004 - 22:43
Re: I got my Smartport Virtual Hard Drive

belgavox wrote:
Hello everyone,

I am trying to do smartport emulation on my Apple IIc (Rom 0) via the floppy emu from Steve Chamberlin. The smartporthd file provided by Craig (see above) works well but I do not understand the rules/guidelines for creating my own 32MB ProDos disk image. So I have two questions:
1) what files must be present in the root of the virtual drive?
2) how can I copy 5.25" disk images onto the virtual drive to run the program that they contain?
Any other info would be greatly appreciated.

Hello,

1) PRODOS.SYS and BASIC.SYSTEM.SYS on a formatted image will create an absolutely bare-bones bootable disk. The quick and easy way to do this is take my SPVHD image and delete everything but PRODOS.SYS and BASIC.SYSTEM.SYS. Or create a new image and copy those two files over to it.

2) Depending on whether or not the 5.25" disk is copy-protected or uses a custom DOS, it can be rather difficult. If it's all file-based programs and the disk is not copy-proteced they can be cut and pasted with Ciderpress or copied from within the real machine using System Utilities or Copy II+.

The problem with Copy-Protection and non-standard DOS is that they don't play nicely by the rules. So if you managed to somehow break down a Copy-Protected disk into a file-based 'replica' (no small task to begin with) there could still be routines in the files that access the disk directly via a modified DOS3.3 RWTS and that could end up playing havoc when you're trying to run them from a Hard Disk.

Cheers!

Craig

Craig MX's picture
Offline
Last seen: 6 months 1 week ago
Joined: Aug 12 2004 - 22:43
Re: I got my Smartport Virtual Hard Drive

Craig MX wrote:

... My plan is to animate the border like the original 32MB/HD title screen, every so often have the SMARTPORT letters swap from blue to orange and have the 3 lights (red-yellow-green) light up.

Which reminds me...

I daresay it's time for me to code up the SMARTPORT letter color swap and the LED lights on that HD disk image this coming weekend.

Not too bad of a turn-around time, only like 2 years and a month... Wink

Offline
Last seen: 2 years 2 months ago
Joined: May 2 2013 - 20:14
Re: I got my Smartport Virtual Hard Drive

Who do I have to kill to get one of these?

Offline
Last seen: 8 months 3 weeks ago
Joined: Feb 27 2014 - 13:26
Re: I got my Smartport Virtual Hard Drive

javster wrote:

It loads right after the floppy drive, you only have to rename any floppy or disk image as "drive0.img" and that's it.

After getting one of these and thinking that it was broken I just wanted to add that the device expects a directory called spvhd with the disk images in it. Four images can be enumerated as drive0.img to drive3.img.

1978AppleII's picture
Offline
Last seen: 1 day 17 hours ago
Joined: Jul 5 2015 - 16:54
Re: I got my Smartport Virtual Hard Drive

jegs2 wrote:
Who do I have to kill to get one of these?

http://pcedric3.free.fr/SmartportVHD/

gsmcten's picture
Offline
Last seen: 1 month 20 hours ago
Joined: Oct 4 2005 - 18:52
Re: I got my Smartport Virtual Hard Drive

Mine is booby-trapped.
Only I can use it. lol

Steven Smile
