Thermal images of an Apple hardware

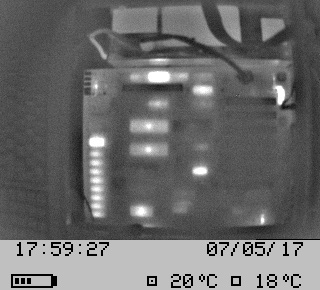

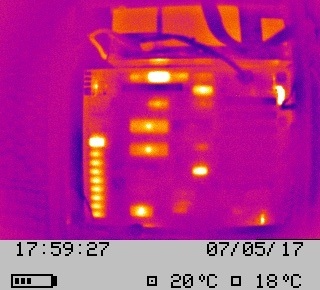

Thermal Image of an Apple //e platinum.

AttachmentSize
Image icon A2e_02.jpg34.99 KB
Image icon A2e_01.jpg31.86 KB
Offline
Last seen: 2 months 2 weeks ago
Joined: May 27 2013 - 13:01
Re: Thermal images of an Apple hardware

Is the computer dead?

Offline
Last seen: 1 day 2 hours ago
Joined: May 22 2013 - 20:37
Re: Thermal images of an Apple hardware

Wow. Cool! Thanks for posting.

stynx's picture
Offline
Last seen: 1 day 5 hours ago
Joined: Apr 19 2012 - 09:41
Re: Thermal images of an Apple hardware

insanitor wrote:
Is the computer dead?

no, up and running.
I just wanted to have the first thermal image I posted to be an apple II Blum 3

stynx's picture
Offline
Last seen: 1 day 5 hours ago
Joined: Apr 19 2012 - 09:41
Re: Thermal images of an Apple hardware
Offline
Last seen: 6 days 13 min ago
Joined: May 27 2009 - 01:37
Re: Thermal images of an Apple hardware

I thought the platinum has only 2 ram chips, not 8.

stynx's picture
Offline
Last seen: 1 day 5 hours ago
Joined: Apr 19 2012 - 09:41
Re: Thermal images of an Apple hardware

Keatah wrote:
I thought the platinum has only 2 ram chips, not 8.

its a classic //e bottom with a platinum case. I got it that way.

-Jonas

stynx's picture
Offline
Last seen: 1 day 5 hours ago
Joined: Apr 19 2012 - 09:41
Re: Thermal images of an Apple hardware

More images: https://www.flickr.com/photos/88521483@N03/albums/72157681725398850

I added images of a working TWGS

Offline
Last seen: 6 days 13 min ago
Joined: May 27 2009 - 01:37
Re: Thermal images of an Apple hardware

Useful for increasing reliability through the use of heatinks.

c0op3r's picture
Offline
Last seen: 1 week 3 days ago
Joined: Nov 11 2016 - 14:25
Re: Thermal images of an Apple hardware

Is that a stock or overclocked TWGS? Those GALs seem warm.

MarNo84's picture
Offline
Last seen: 5 months 4 weeks ago
Joined: Jan 5 2016 - 14:11
Re: Thermal images of an Apple hardware

OMG Smile I love this project - I would like to see such photos of an Apple /// up and running xD

Cheers,
Marcus

stynx's picture
Offline
Last seen: 1 day 5 hours ago
Joined: Apr 19 2012 - 09:41
Re: Thermal images of an Apple hardware

c0op3r wrote:
Is that a stock or overclocked TWGS? Those GALs seem warm.

8Mhz but I have an external button to with to 16Mhz. The visual representation is not necessarily of dark=very cold, white=very hot. The GALs are still cooler than my body temperature. The SMD LS245 on the other hand can easily be felt as very warm by touch.

stynx's picture
Offline
Last seen: 1 day 5 hours ago
Joined: Apr 19 2012 - 09:41
Re: Thermal images of an Apple hardware

Blue Disk
CFFA3000
HS-SCSI card 1
HS-SCSI card 2
RamFast card 1
RamFast card 2
TechnoWarp Classic IDE
UtherNet II
Video Overlay Card
