Apple II keyboard light

13 posts / 0 new
Last post
Offline
Last seen: 5 hours 35 min ago
Joined: Aug 4 2015 - 14:30
Posts: 94
Apple II keyboard light

I was ordering some parts to repair my keyboard, and I stumbled upon a light bulb which in dimensions seems to be perfect for my broken light bulb.
I don't know if there are different light bulb for the different keyboard types?
It's a good match for my europlus keyboard.
Just ordered it, so it's untested.

Part no. CM7361-ND from
http://www.digikey.com/product-search/en?keywords=CM7361-ND

Just wanted to let you know, in case someone else needs it.

EDIT: It fits perfectly in my keyboard.

Offline
Last seen: 5 years 11 months ago
Joined: Aug 27 2015 - 10:33
Posts: 7
Re: Apple II keyboard light

Speaking about the keyboard light, does anyone know where I could find an 'Enhanced' sticker to apply to it?

Offline
Last seen: 4 years 5 months ago
Joined: Aug 8 2014 - 10:22
Posts: 42
Re: Apple II keyboard light

I don't currently own an enhanced model; all my systems are pre-enhanced but I'm pretty sure if it was an enhanced model it was printed. Not a sticker, onto the machine.

Offline
Last seen: 5 years 11 months ago
Joined: Aug 27 2015 - 10:33
Posts: 7
Re: Apple II keyboard light

It is indeed an original enhanced model and I believe that the 'enhanced' label was always just a sticker on top of the power indicator.

Offline
Last seen: 2 years 6 months ago
Joined: Mar 16 2017 - 07:31
Posts: 32
Re: Apple II keyboard light

Hi how do I replace the lamp in a 'raised' power light (button) on an Apple II Plus (early plus that has the fully raised button).

I popped off the power key-cap and I see the little lamp. Do I just use pliers? Do I have to remove that white plastic piece?

Thanks

macnoyd's picture
Online
Last seen: 1 hour 13 min ago
Joined: Oct 15 2012 - 08:59
Posts: 725
Re: Apple II keyboard light

If you can see the bulb, wrap a piece of (say) Scotch tape to the top of the bulb and pull it straight up.
Easy-peasy. Smile

Offline
Last seen: 2 years 6 months ago
Joined: Mar 16 2017 - 07:31
Posts: 32
Re: Apple II keyboard light

Thanks!! now I just have to wait for a new lamp from DigiKey

PINKBOY1006's picture
Offline
Last seen: 3 weeks 5 days ago
Joined: Jul 9 2016 - 17:27
Posts: 125
Re: Apple II keyboard light

Make sure you put the bulb in with a paper towel, or at least wipe it down with alcohol. The oil from your hands keep the heat on the bulb and it eventually melts and dies. Its a good precaution.

Offline
Last seen: 18 hours 16 min ago
Joined: Dec 19 2008 - 21:01
Posts: 337
Re: Apple II keyboard light

I got a few of these bulbs and they don't fit my Apple II at all. They are too large... The legs won't fit in the socket.

Offline
Last seen: 1 year 11 months ago
Joined: Oct 9 2013 - 19:33
Posts: 372
Re: Apple II keyboard light

What keyboard? if you're looking for the raised power light original Apple II keyboard you need a different bulb. I'm not at home so I don't have the link handy (forget if it was jameco or digikey) for the bulb you'd need.

Zan

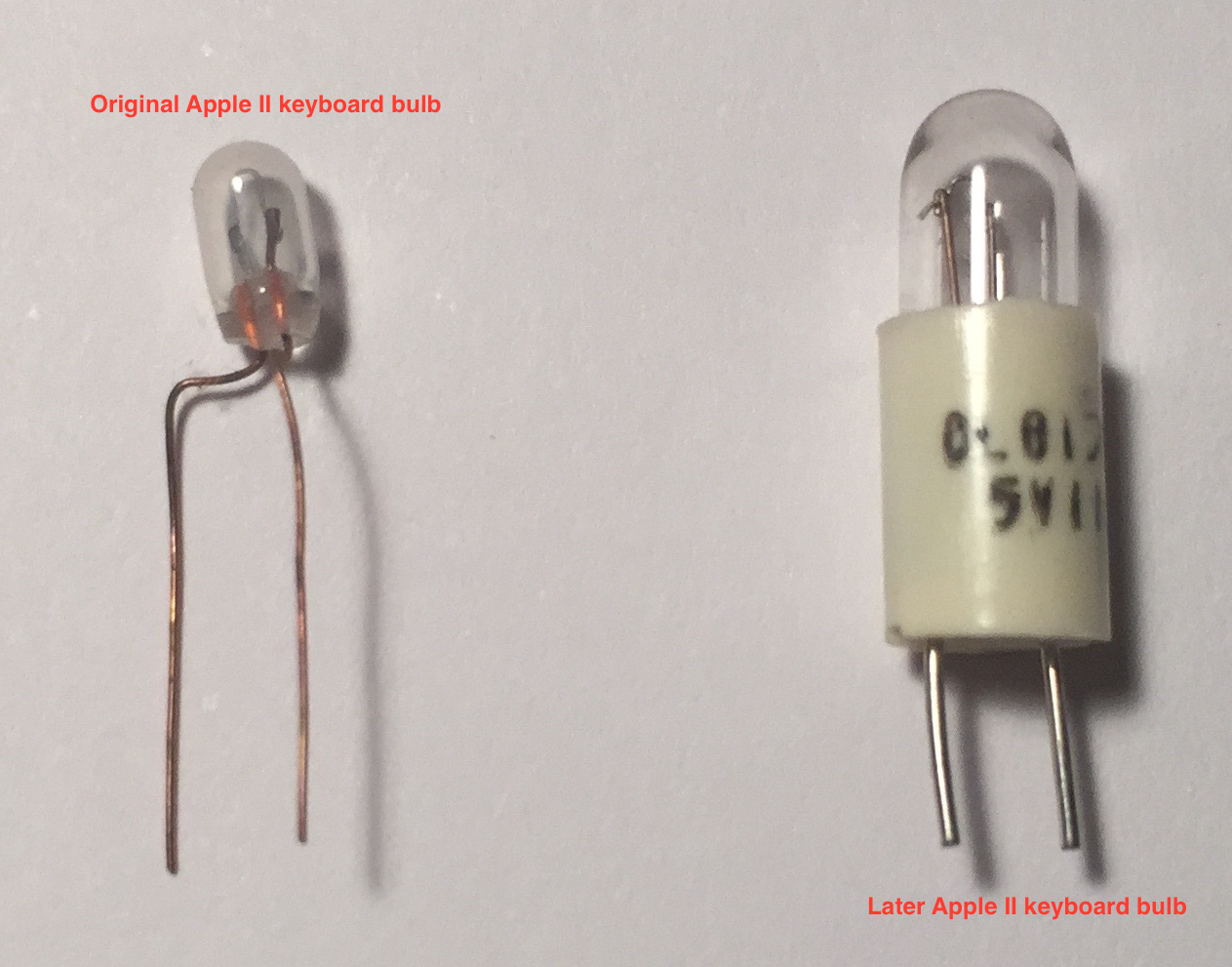

Two Different Apple II Keyboard Lamps

Offline
Last seen: 18 hours 16 min ago
Joined: Dec 19 2008 - 21:01
Posts: 337
Re: Apple II keyboard light

Yes, mine needs the first, and I bought the second. It's a later keyboard (1980) with raised square.

Magnificat's picture
Offline
Last seen: 1 month 5 days ago
Joined: Mar 16 2020 - 12:53
Posts: 32
Where can one acquire the

Where can one acquire the second type? the one on the right the larger style? My bulb just went on the restored apple iie I am working on and i need a new one.  mine has a shrink wrap  on it but its clearly the right sided one as its like a capsule with 2 stubby metal legs..i found this online and although a little expensive (free shipping helps) at 10 bucks...Apple II Keyboard power light bulb indicator ii iie ii+ ii plus US SELLER | eBay   anyone have any info on this?OK I think these are the ones I need: Apple II Plus Keyboard Lamp | eBay

Magnificat's picture
Offline
Last seen: 1 month 5 days ago
Joined: Mar 16 2020 - 12:53
Posts: 32
The first link i put with the
The first link i put with the green bulbs was a bust!  The bulb broke or was damaged during shipping and seems to be 2 pieces that with little effort quickly fell apart.   The second link was PERFECT for the apple iie keyboard lights.  I received 3 of them (ordered 2) and they are white/natural light bulbs which when i tested on my DC power supply to verify orientation and health were not overly bright.  For some reason I sort of expected them to be green, but its all good.  When installed the Apple has a green lens which makes it green. The only issue I had was a lot of light leaking out so I shrinkwrapped the lot.  They look MUCH better with less light bleeding out between the keys.
