Apple IIe cards ?

7 posts / 0 new
Last post
ewu
Offline
Last seen: 5 years 2 months ago
Joined: Sep 27 2014 - 05:20
Posts: 10
Apple IIe cards ?
AttachmentSize
Image icon 1a.JPG1.99 MB
Image icon 2a.JPG2 MB
Image icon 3a.JPG2.03 MB
Image icon 4a.JPG1.99 MB
Image icon 5a.JPG1.91 MB
Image icon 6a.JPG1.97 MB

hello

I have cards that I can not identify.
Can anyone tell me what they are and
whether you are for the Apple IIe.

regards
uwe

Offline
Last seen: 3 years 7 months ago
Joined: Jan 24 2005 - 16:20
Posts: 356
Re: Apple IIe cards ?

Fuzzy pics...

6 - Softcard clone
5 - looks like a strapless 16K card
4/3 - not sure, but reminds of a German MFM controller
2 - is that a 6551 on there?
1 - RGB?

macnoyd's picture
Online
Last seen: 20 min 28 sec ago
Joined: Oct 15 2012 - 08:59
Posts: 839
Re: Apple IIe cards ?

Sharper images would help a lot.

Best I can tell:

1 looks to be an RGB card to a monitor.
2 looks to be a serial comms card "for something"
3 & 4 "might" be a parallel card, but I can't really tell.
5 looks to be a 16K memory card, and
6 is a z80 processor card

speedyG's picture
Offline
Last seen: 4 years 11 months ago
Joined: Nov 16 2011 - 07:45
Posts: 2493
Re: Apple IIe cards ?

Hello ewu,
by the numbers:

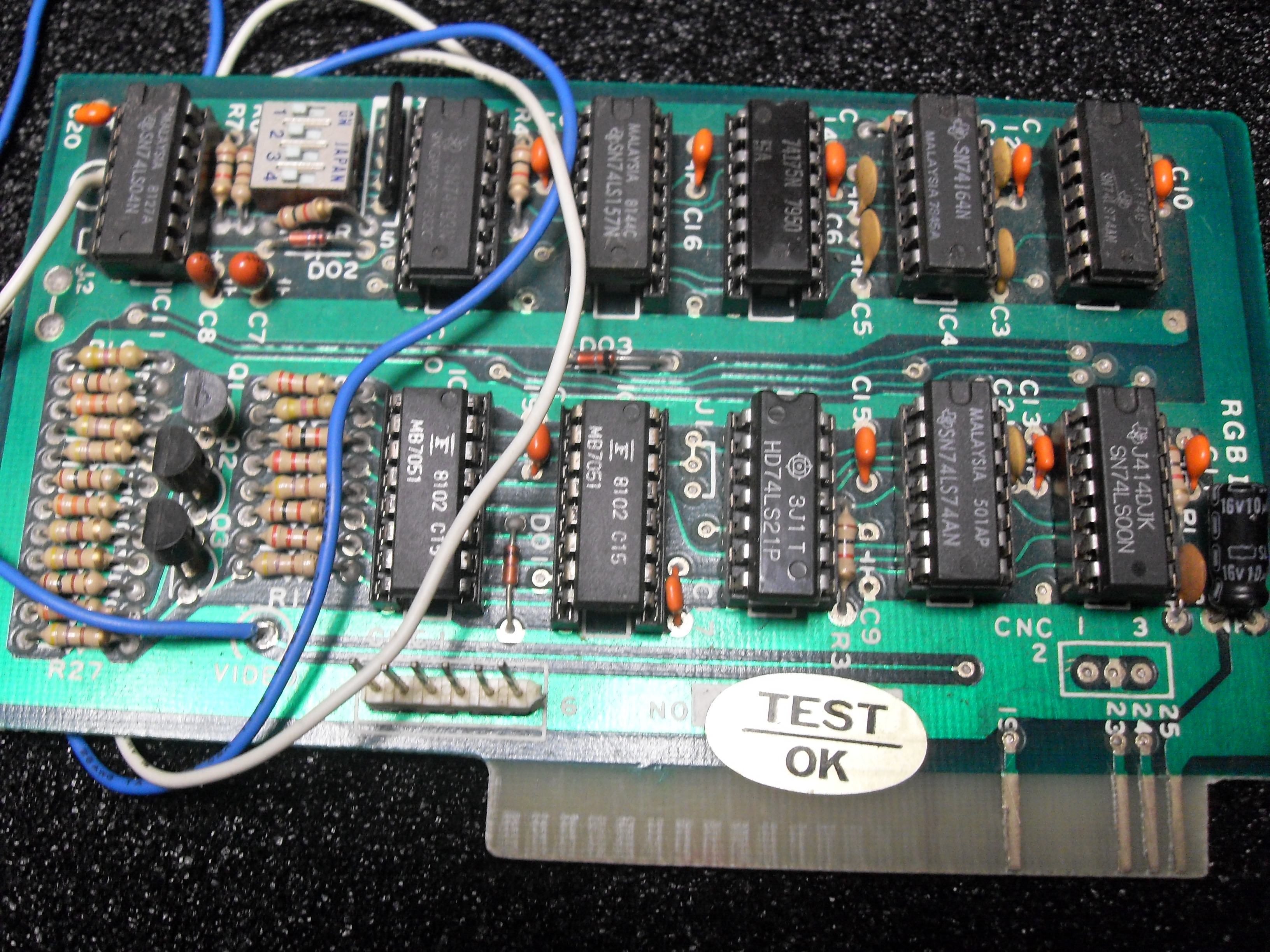

1) RGB Card

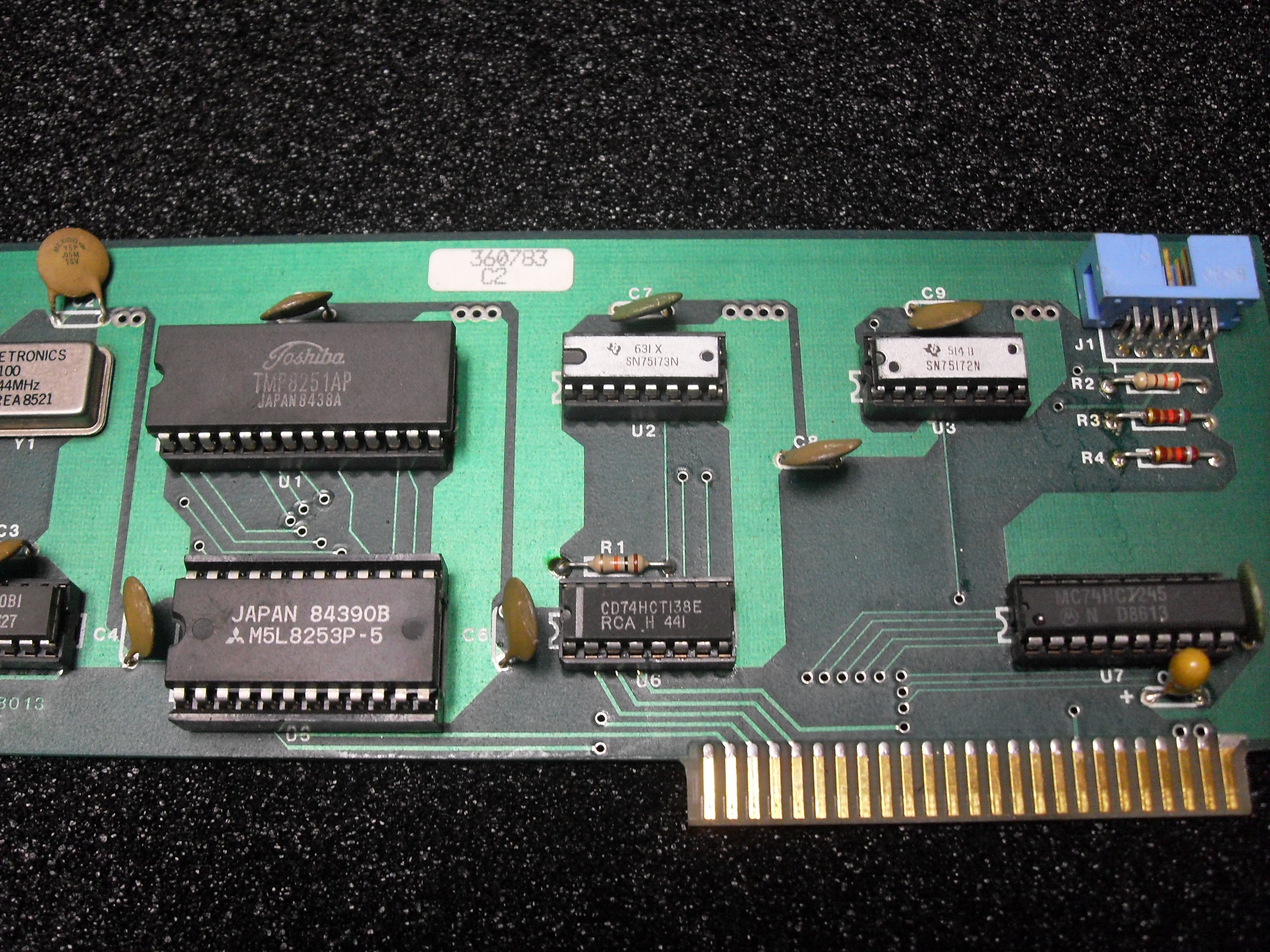

2) Serial card

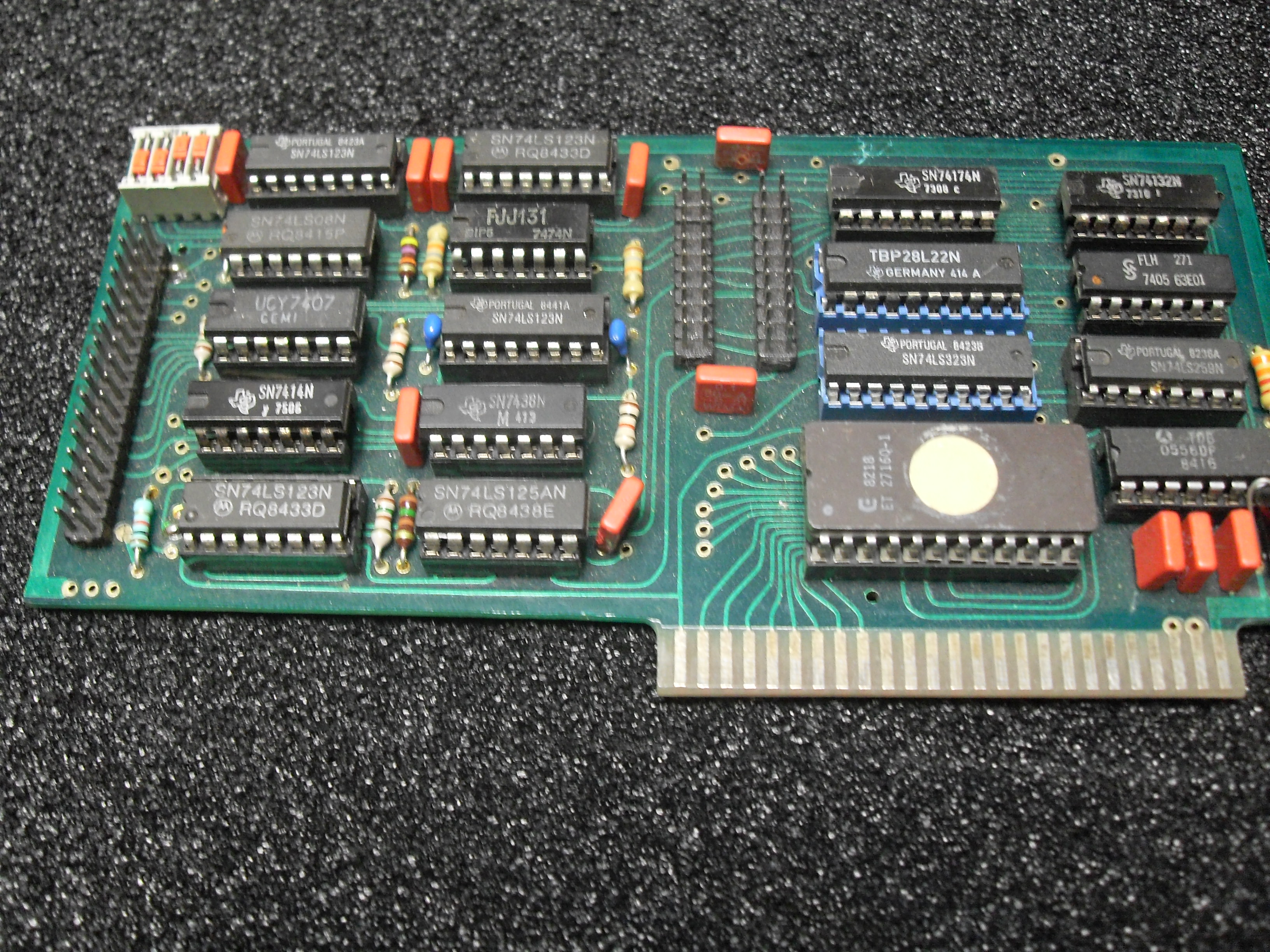

3) FDC4 Disk Interface Card
see Info´s at:http://www.appleii-box.de/appleboxAppleIIFDC4.htm
and : http://www.appleii-box.de/003_appleboxdownload.htm ( at bottom )

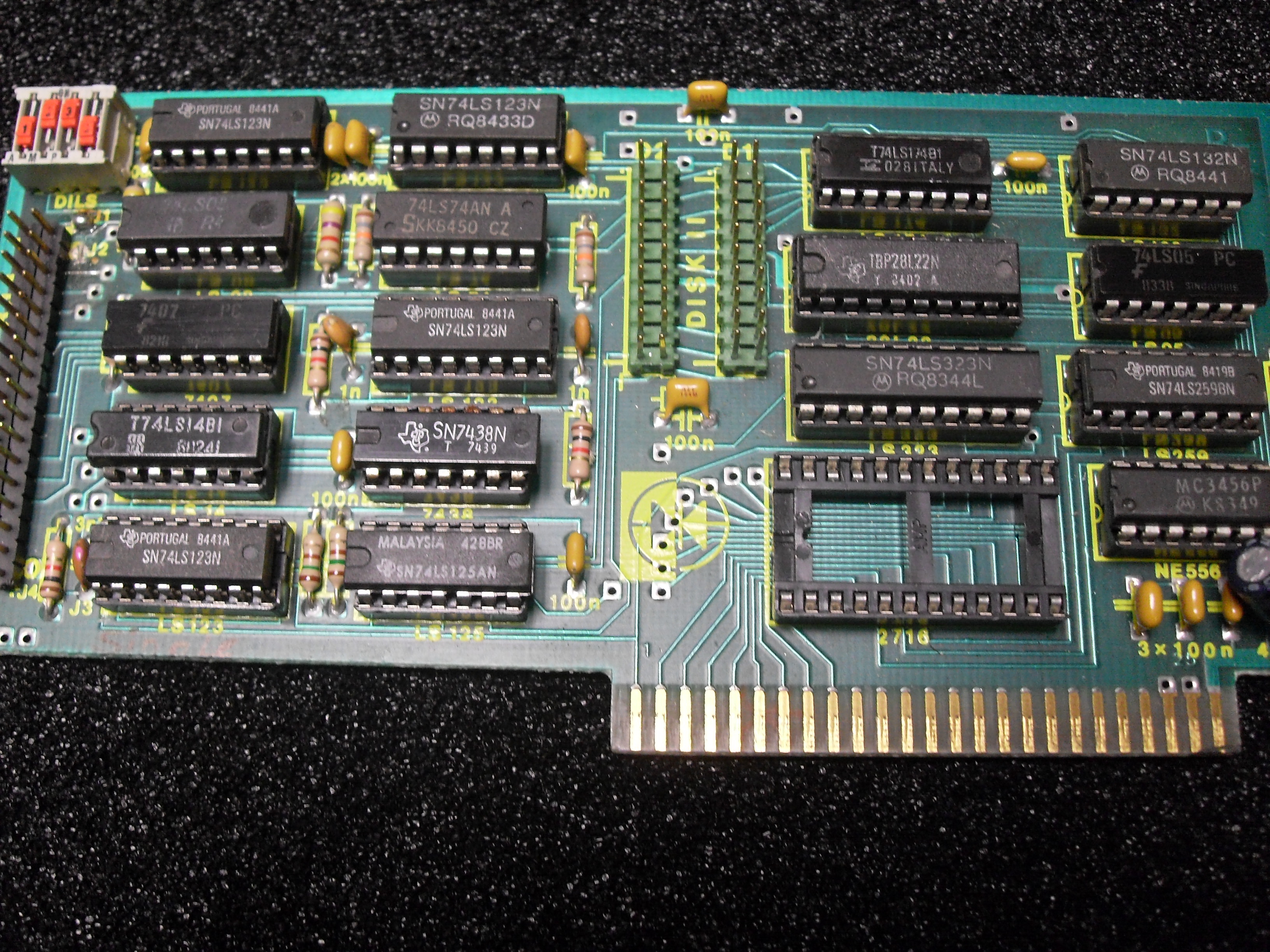

4) FDC4 Disk Interface Card

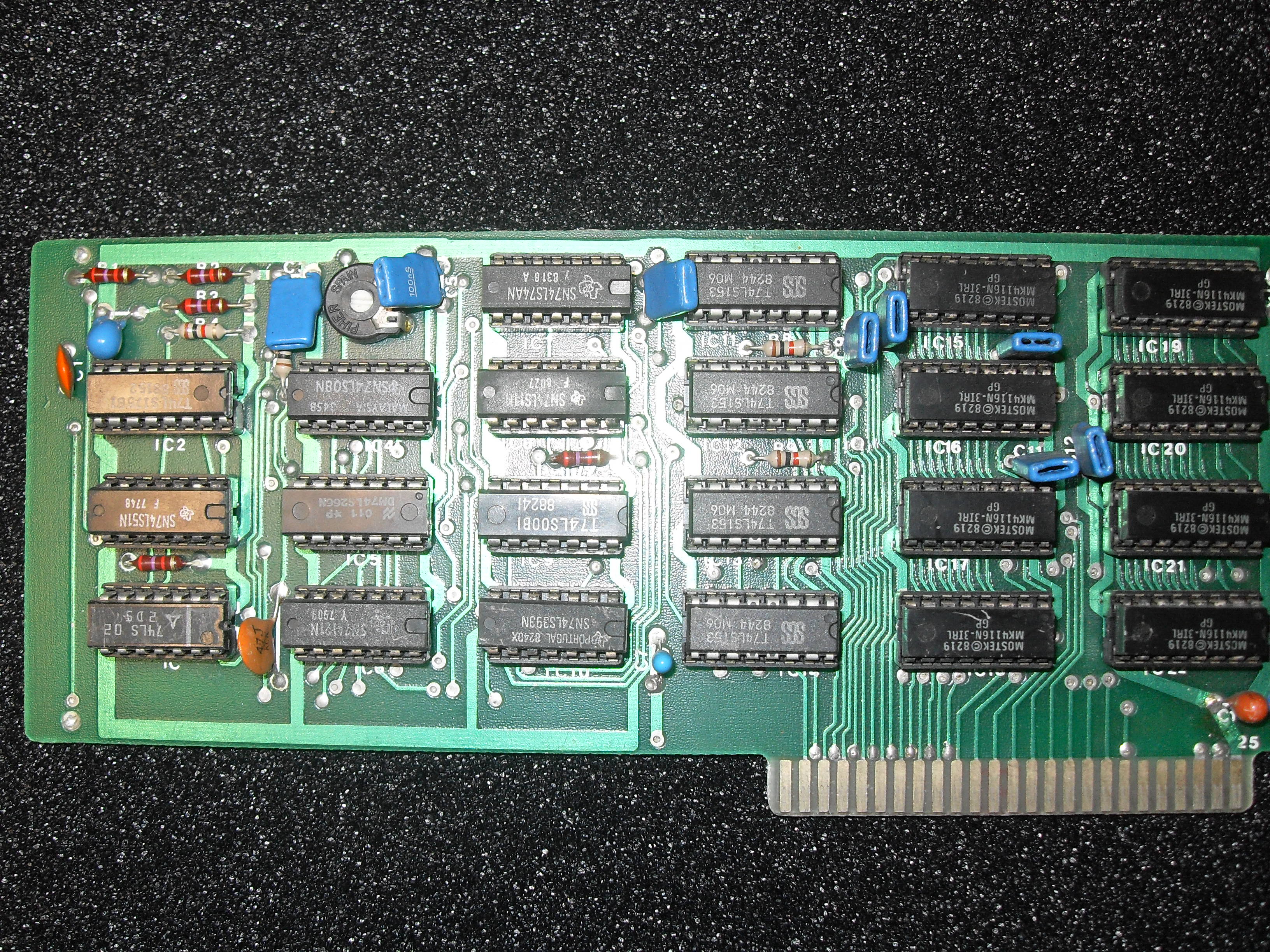

5) 16 Kb Language Card ( only II+ or II NOT FOR IIe !)

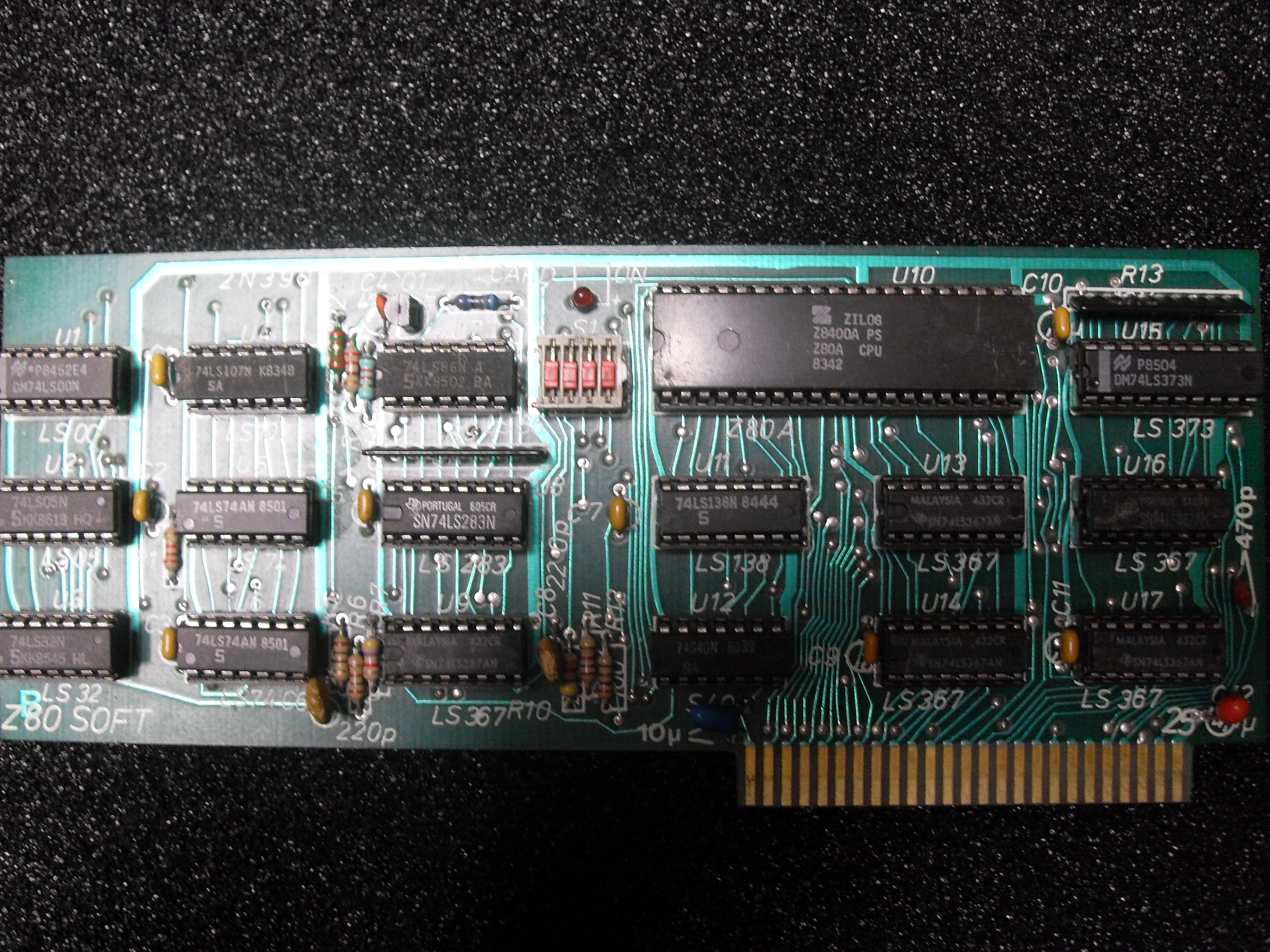

6) Z80 Clone Card ( used for booting CPM operation System )

1,2,3,4 and 6 may be used In IIe.

sincerely speedyG

ewu
Offline
Last seen: 5 years 2 months ago
Joined: Sep 27 2014 - 05:20
Posts: 10
Re: Apple IIe cards ?

hello

Thanks for the Antworten.Ich've uploaded images with better quality.

regards
uwe

MarkO's picture
Offline
Last seen: 3 weeks 1 day ago
Joined: Dec 10 2011 - 16:26
Posts: 688
Re: Apple IIe cards ?

Images 5a and 6a have errors... Not .JPG???

MarkO

gsmcten's picture
Offline
Last seen: 5 years 9 months ago
Joined: Oct 4 2005 - 18:52
Posts: 2629
Re: Apple IIe cards ?

ewu,

Welcome!

Looks like you have the answers you were looking for.

Steven Smile
